R0P13A Technical Specifications

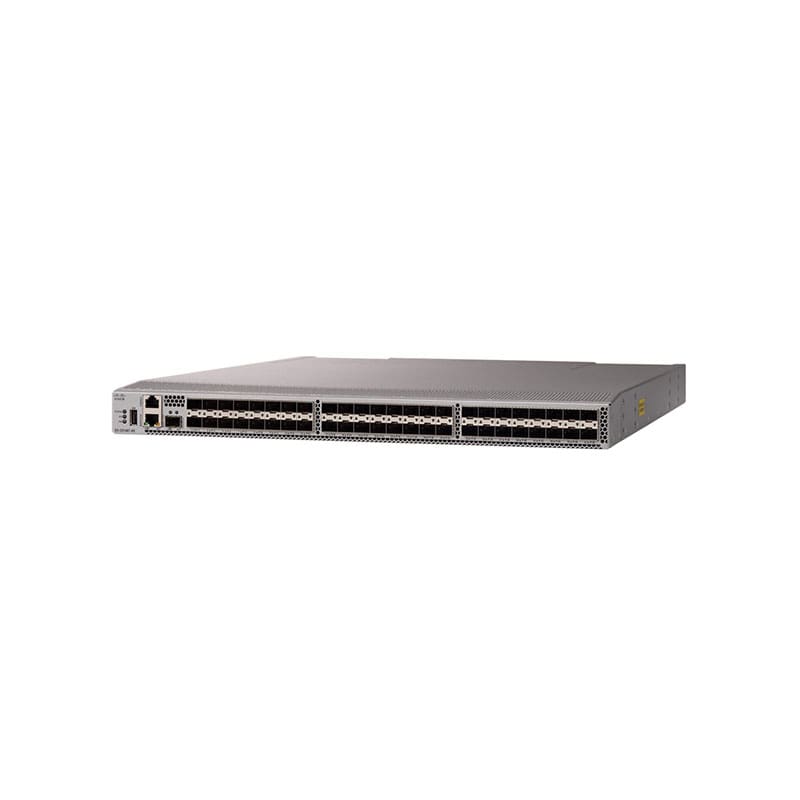

HPE StoreFabric SN6620C 24-port 32Gb SFP+ Fibre Channel Switch
Header / Brand: HPE
Miscellaneous / Product Color: Gray
Networking / Form Factor: Rack-mountable
Networking / Ports Qty: 48
Networking / Type: Switch
Packaged Quantity: 1
Dimensions & Weight
Depth: 56.6 cm
Height: 4.37 cm
Weight: 8.6 kg
Width: 43.9 cm
Environmental Parameters
Humidity Range Operating: 10 – 85% (non-condensing)
Max Operating Temperature: 40 °C
Max Storage Temperature: 70 °C
Min Operating Temperature: 0 °C
Min Storage Temperature: -25 °C
Expansion / Connectivity
General
Authentication Method: RADIUS, TACACS+
Enclosure Type: Rack-mountable 1U
Performance: Aggregate bandwidth: 1536 Gbps
Subtype Fibre Channel
Miscellaneous
Rack Mounting Kit: Included
Power
Installed Qty: 2 (installed) / 2 (max)
Power Device: Internal power supply – hot-plug
Power Redundancy: Yes
Power Redundancy Scheme: 1+1
Voltage Required: AC 120/230 V (50/60 Hz)
