QW2520-BKK1S Technical Specifications

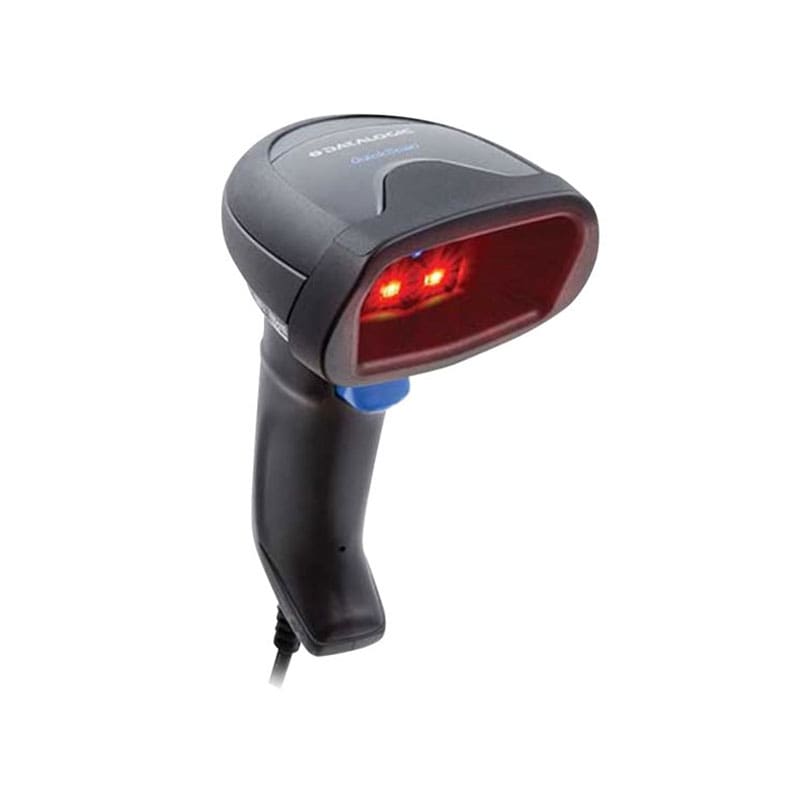

Datalogic QuickScan 2500 Series QW2520 Kit Barcode scanner
Brand: Datalogic
Product Line: Datalogic QuickScan 2500 Series
Model: QW2520
Manufacturer: Datalogic
Connectivity
Connectivity Technology: Wired
Interface Required: 1 x USB – Type A
Scanning
Scan Mode: Single-pass
Sensor Resolution: 640 x 480
Power
Electric Current Required: 400 mA (typical), 90 mA (standby)
Software
Software Type: Datalogic Aladdin, OPOS/JavaPOS Drivers
Technical Information
Drop Specification: 1.5 m to concrete
Form Factor: Handheld
Image Sensor Type: 2D imager
Interface: USB
Light Source: Red LED
Light Source Wave Length: 624 nm
Max Operating Temperature: 50 degree Celsius
Min Operating Temperature: 0 degree Celsius
Included Items
Cables: USB cable – external
Included Accessories: Stand
Dimensions & Weight
Height: 14.8 centimetre
Weight: 145 gram
Width: 6.8 centimetre
Depth: 12.6 centimetre
