QSFPP-40G-LX4 Technical Specifications

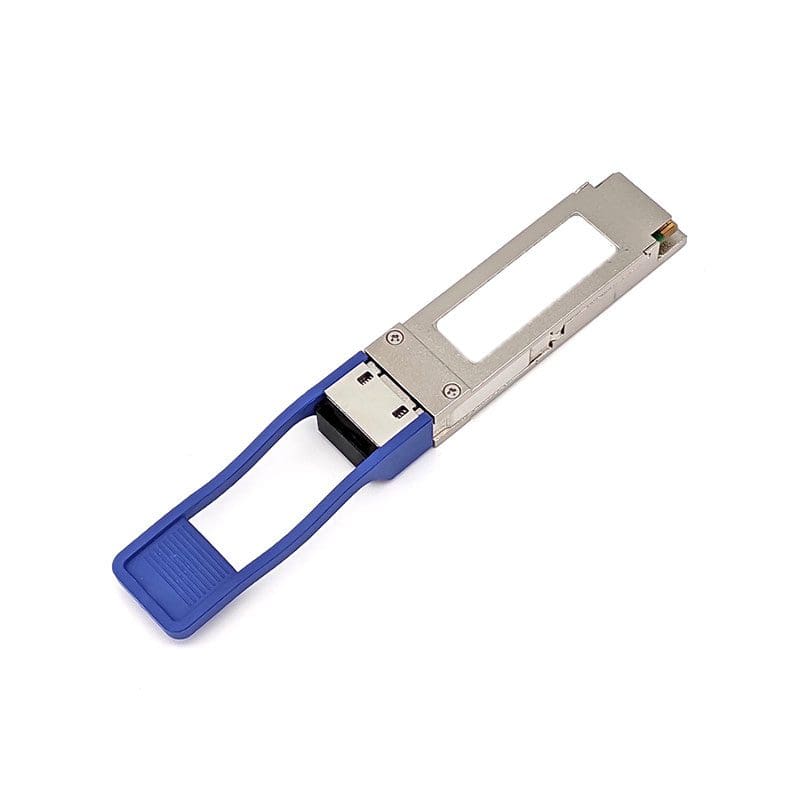

Juniper Networks 40GBASE-LX4 QSFP+ Pluggable Transceiver
Product Name: 40GBASE-LX4 QSFP+ Pluggable Transceiver
Manufacturer Part Number: QSFPP-40G-LX4
Product Type: QSFP+
Ethernet Technology: 40 Gigabit Ethernet
Media Type: Supported Optical Fiber
Network Technology: 40GBase-LX4
Interfaces / Ports Details: 1 x LC 40GBase-LX4 Network
Transmitter wavelengths (range): Lane 0–1264.5 nm through 1277.5 nm, Lane 1–1284.5 nm through 1297.5 nm, Lane 2–1304.5 nm through 1317.5 nm, Lane 3–1324.5 nm through 1337.5 nm
Transmitter output power, each lane (minimum): SMF -9.0 dBm, MMF -7.0 dBm
Transmitter output power, each lane (maximum): SMF 2.3 dBm, MMF 4.3 dBm
Receiver input power, each lane (minimum): SMF -12.0 dBm, MMF -10.0 dBm
Receiver input power, each lane (maximum): SMF 2.3 dBm, MMF 4.3 dBm
