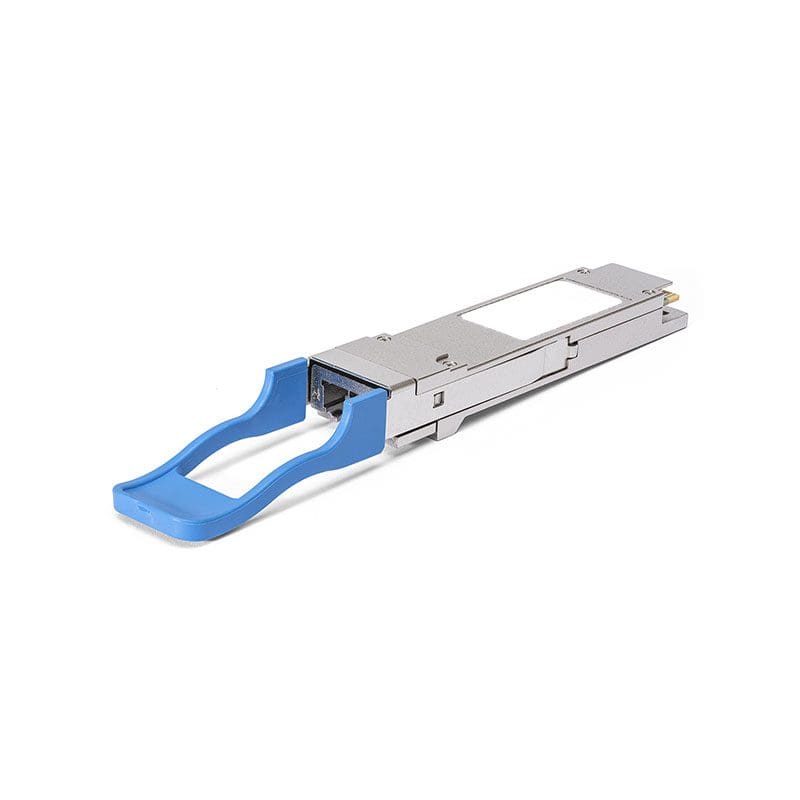

QSFP-100G-LR4-ET Technical Specifications
Juniper Networks Extended Temperature Capable 100GE LR4OPTICS Upto 85C
Model Type: 100 Gigabit Ethernet
Transceiver Type: QSFP28
Connector: LC/PC
MSA compliance (SFF, for e.g. SFF-8665)SFF-8665
Maximum Power consumption: (W)4.5 W
MSA compliance (SFF, for e.g. SFF-8665): SFF-8665
Digital Diagnostic Monitoring: Transceiver Temperature. Transceiver Supply Voltage, Tx Bias Current, Tx output power, Rx received optical power
Signaling rate, each lane: 25.78125 GBd +/- 100 ppm
Transmitter fibers: 2
Transmitter output power, each lane (minimum): -4.3 dBm
Transmitter output power, each lane (maximum): 4.5 dBm
Receiver input power, each lane (minimum): -10.6 dBm
Receiver input power, each lane (maximum): 4.5 dBm
Receiver sensitivity (OMA), each lane (maximum): -8.6 dBm
Stressed receiver sensitivity (OMA) each lane (maximum): -6.8 dBm
