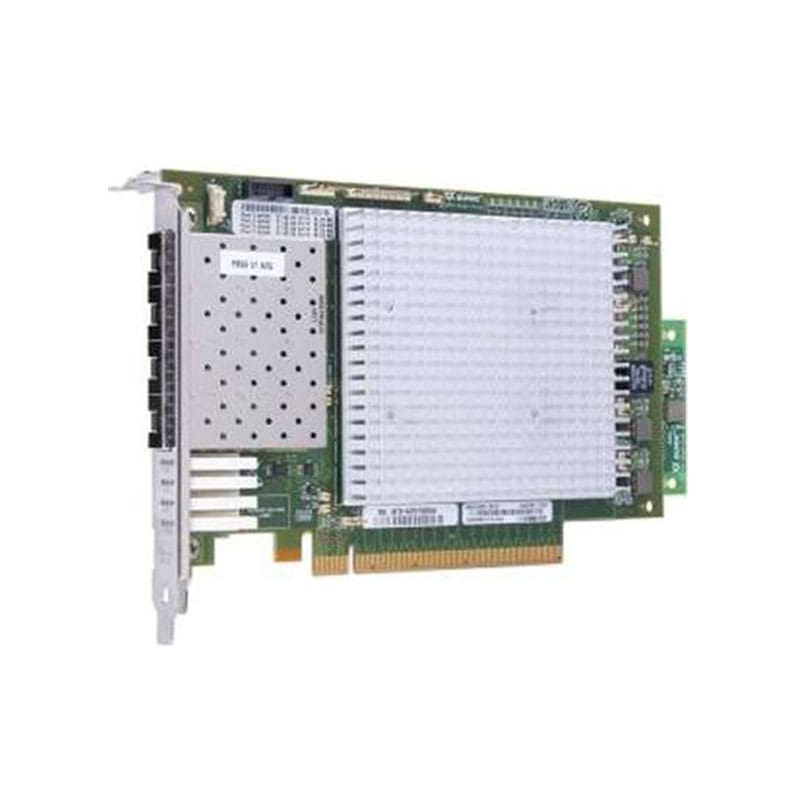

QLE2764-SR-CK Technical Specifications
QLogic 32GB Quad Port Fiber Channel Host Bus Adapter
Brand: QLogic
Product Line: QLogic
Model: QLE2764-SR-CK
Manufacturer: QLOGIC
Network & Communication
Connectivity Technology: Wired
Data Link Protocols: 32Gb Fibre Channel
Data Transfer Rate: 32 GBps
Fibre Channel: FC-GS-2, FC-GS-3, FCP-2, FC-PI-5, FC-PI-6, FC-Tape, SCSI-FCP
Form Factor: Plug-in card
Host Interface: PCI Express 3.0 x16
Max Transfer Distance (Optical): 623 ft
PCI Specification Revision: PCIe 3.1
Product Type: Host bus adapter
Remote Management: CLI, SMI-S
Connectivity
Interface Provided: 4 x 32Gb Fibre Channel – SFP+
Port Quantity: 4
Network & Adapter Ports: 32Gb Fibre Channel
Software
Software Type: QConvergeConsole
Technical Information
Max Operating Temperature: 131 degree Fahrenheit
Min Operating Temperature: 32 degree Fahrenheit
Operating Humidity: 10 – 90% (non-condensing)
