Home›Controllers›QLogic Controllers›QLE2694L-CK QLogic Host Bus Adapter PCIe 3.0 x8 16Gb Fibre Channel x 4
QLogic-QLE2694L-CK

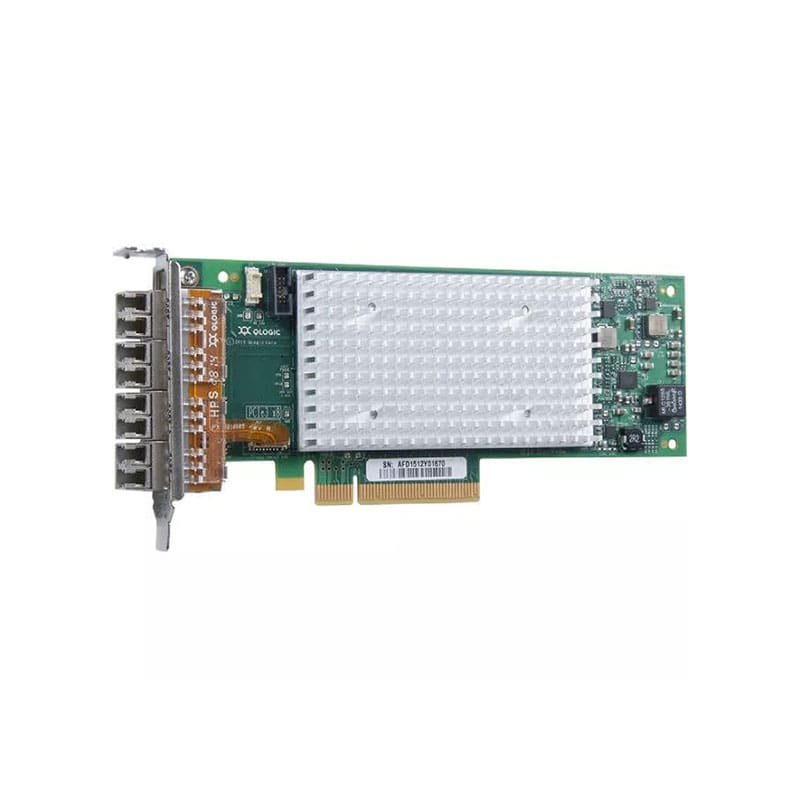

QLE2694L-CK QLogic Host Bus Adapter PCIe 3.0 x8 16Gb Fibre Channel x 4

QLE2694L-CK Overview

The QLogic 2690 series of Enhanced Gen 5 (16Gb) Quad-port Fiber Channel Adapters are designed for enterprise data centers that require the ultimate in Fiber Channel performance, power efficiency, reliability, and investment protection for demanding virtualized and private cloud environments. These Enhanced Gen 5 Fiber Channel adapters deliver the industry’s top Fiber Channel performance with more than 2.6 million I/O operations per second (IOPS) – almost two times the IOPS of previous Gen 5 Fiber Channel HBAs – with optimal load balancing and linear performance scalability per port. QLogic’s port-isolation design provides independent data paths for each port, running full line rate with more than 12,000 MB per second of full duplex bandwidth across 16 PCI Express (PCIe) 3.0 lanes.

$3,676

Buy Now
Availability: In Stock
SKU:QLE2694L-CK
Brand:

QLE2694L-CK Technical Specifications

QLogic Host Bus Adapter PCIe 3.0 x8 16Gb Fibre Channel x 4

Brand: QLogic
Product Line: QLogic
Model: QLE2694L-CK
Manufacturer: QLOGIC
Network & Communication
Connectivity Technology: Wired
Data Link Protocols: 16Gb Fibre Channel
Data Transfer Rate: 16 GBps
Form Factor: Plug-in card
Host Interface: PCI Express 3.0 x8
Low Profile: Low profile
PCI Specification Revision: PCIe 3.1
Product Type: Host bus adapter
Remote Management: CLI, SMI-S
Connectivity
Interface Provided: 4 x 16Gb Fibre Channel
Port Quantity: 4
Network & Adapter Ports: 16Gb Fibre Channel
Software
Software Type: QConvergeConsole
Technical Information
Max Operating Temperature: 131 degree Fahrenheit
Min Operating Temperature: 32 degree Fahrenheit
Operating Humidity: 10 – 90%
Dimensions & Weight
Height: 2.7 inch
Depth: 6.6 inch
