QLE2694-T-DEL Technical Specifications

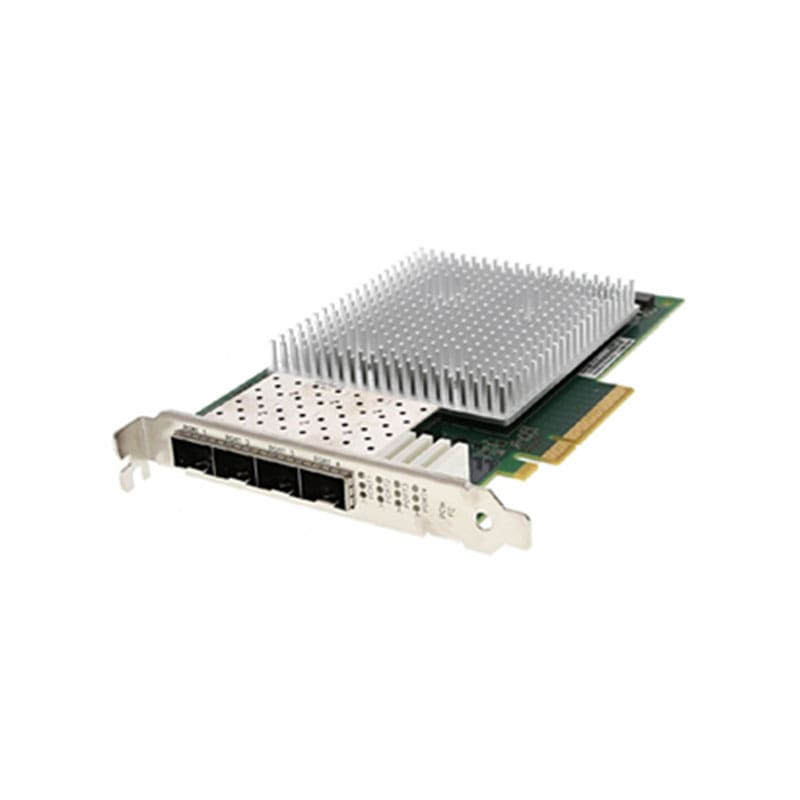

Dell Qlogic 16GB Fiber Channel SFP+ Quad Port Host Bus Adapter
Manufacturer: Dell
MPN: QLE2694-T-DEL
Type: Controller
Controller Type: Fiber Channel
Technical Information
Device Type: Host Bus Adapter
Form Factor: Plug-in Card – Low Profile
Interface (Bus) Type: PCI Express 3.0 X8
PCI Specification Revision: PCIE 3.1
Ports: 16GB Fiber Channel X 2
Connectivity Technology: Wired
Data Link Protocol: 16GB Fiber Channel
Fiber Channel: FC-GS-2, FC-GS-3, FC-TAPE, FCP-2, FC-PI-5, SCSI-FCP, FC-PI-6
Data Transfer Rate: 16 GBPS
Max Transfer Distance: 623 Ft
Capacity: Concurrent Logins: 2048 Active Exchanges: 2048
Remote Management Protocol: SMI-S, Cli
