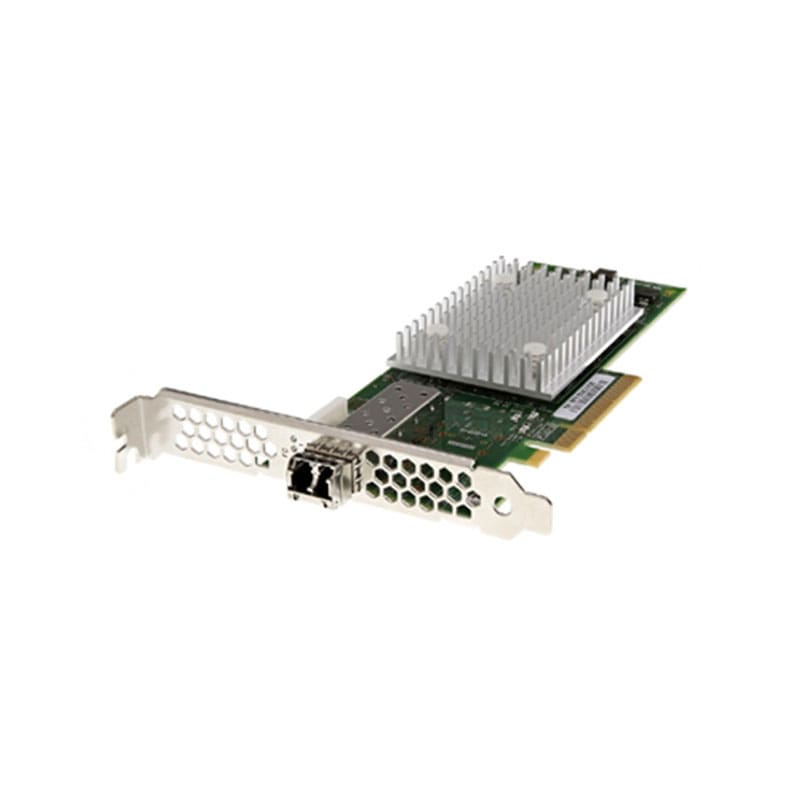

QLE2690-DELL Technical Specifications
Dell 16 Gigabytes Per Second (GBPS) Single Port Peripheral Component Interconnect Express (PCI-E) 3.0 X8 Fibre Channel Host Bus Adapter
Manufacturer: Dell
Part Number or SKU# QLE2690-DELL
Device Type: Host Bus Adapter
Form Factor: Plug-in Card
Technical Information for Dell PCI-E Adapter
Interface (bus) Type : PCI E 3.0 X8
PCI Specification Revision: PCI-E 3.1
Ports: 16GB Fibre Channel X 1
Connectivity Technology: Wired
Data Link Protocol:16GB Fibre Channel
Fibre Channel:fc-gs-2, Fc-gs-3, Fc-tape, Fcp-2, Fc-pi-5, Scsi-fcp
Data Transfer Rate:16 GBPS
Max Transfer Distance:1312 Ft
Capacity:concurrent Logins: 2048 S Active Exchanges: 2048
Remote Management Protocol:smi-s, Cli
