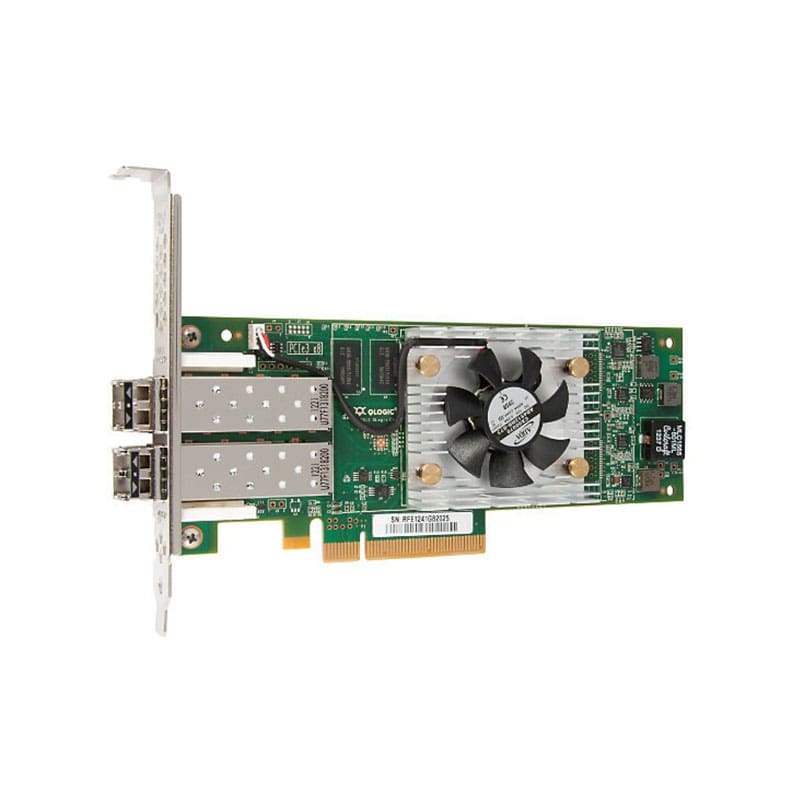

QLE2672-CK Technical Specifications
QLogic Host Bus Adapter PCIe 3.0 x4/PCIe 2.0 x8 16Gb Fibre Channel x 2
Brand: QLogic
Product Line: QLogic
Model: QLE2672-CK
Manufacturer: QLOGIC
Network & Communication
Connectivity Technology: Wired
Data Link Protocols: 16Gb Fibre Channel
Data Transfer Rate: 16 GBps
Form Factor: Plug-in card
Host Interface: PCI Express 3.0 x4 / PCI Express 2.0 x8
Low Profile: Low profile
Max Transfer Distance (Optical): 312 ft
PCI Specification Revision: PCIe 2.0, PCIe 3.0
Product Type: Host bus adapter
Remote Management: SMI-S
Expansion Slots
Connectivity
Interface Provided: 2 x 16Gb Fibre Channel – LC – x 2
Port Quantity: 2
Network & Adapter Ports: 16Gb Fibre Channel
Software
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Operating Humidity: 10 – 90% (non-condensing)
Product Information
Packaged Quantity: 1
Included Items
Included Accessories: Low-profile bracket
Dimensions & Weight
Height: 2.5 inch
Depth: 6.6 inch
