QLE2564-CK Technical Specifications

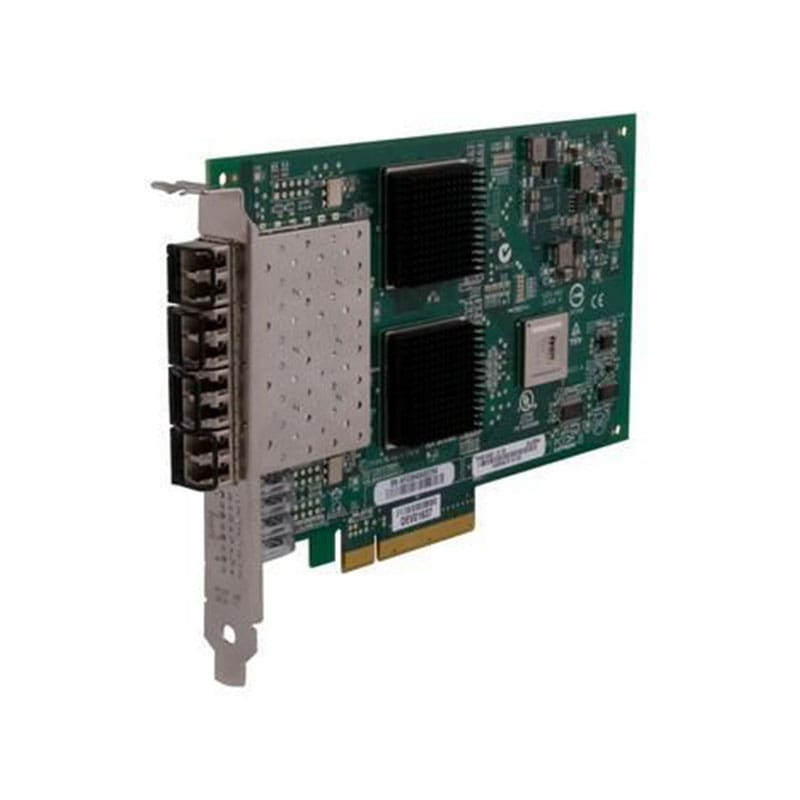

QLogic QLE2564 – host bus adapter
Manufacturer: QLOGIC
Brand: QLogic
Product Line1: QLogic
Model: QLE2564
Networking
Type: Host bus adapter
Form Factor: Plug-in card
Interface (Bus) Type: PCI Express 2.0 x8
PCI Specification Revision: PCIe 2.0
Connectivity Technology: Wired
Fibre Channel: FC-AL, FC-AL-2, FCP-2, FCP-3
Data Transfer Rate: 8.5 GBps
Ports
Qty: 4
Type: 8Gb Fibre Channel
Expansion Slots
Expansion Slots: 4 (total) / 0 (free) x SFP+
Interface Provided
Interfaces: 4 x 8Gb Fibre Channel (short wave) – LC multi-mode
Slot Required
Compatible Slots: 1 x PCI Express 2.0 x8
Software
Type: SANsurfer FC HBA CLI, SANsurfer FC HBA Manager
Power Device
Power Consumption Operational: 13 watt
System Requirements
System Requirements Details
Dimensions & Weight
Depth: 6.6 inch
Height: 4.4 inch
