QFX5220-32CD-AFO Technical Specifications

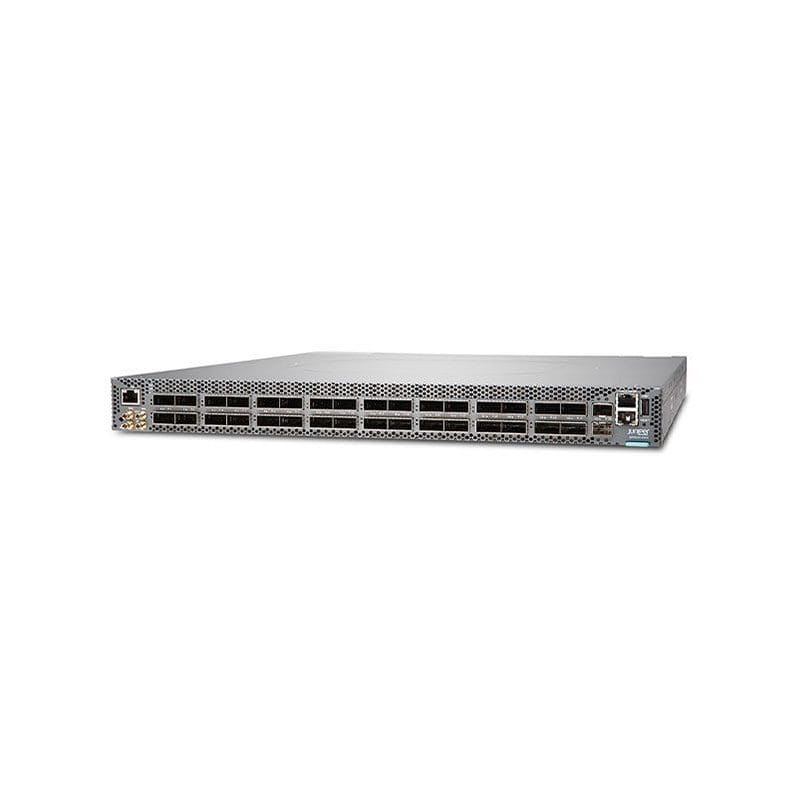

Juniper QFX5220 1U 32x 400GbE Switch with AC Power Supply
Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks QFX Series
Model :QFX5220-32CD
Packaged Quantity :1
Chassis
Airflow Direction :Front to back airflow, Back to front airflow
Processor
Type :Xeon D-1518, Xeon
Processor Number :D-1518
Installed Qty :1
Manufacturer :Intel
Performance
Performance :Switching throughput: up to 12.8 Tbps, Forwarding capacity: 80000000 packets per second
Capacity
Capacity :MPLS labels: 16000, Packet buffer size: 128 MB, Firewall egress filters RACL rules: 2558, IPv6 routes (Unicast): 130000, IPv4 routes (Unicast): 3800000, ARP entries: 32000, Firewall egress filters (VACL, PACL rules): 512, LAG groups: 128, VLAN IDs: 3968, Maximum member ports per LAG: 64, GRE tunnels: 2000, Firewall ingress filters(RACL, VACL, PACL rules): 768
