Refurbished QFX5200-48Y-AFI Technical Specifications

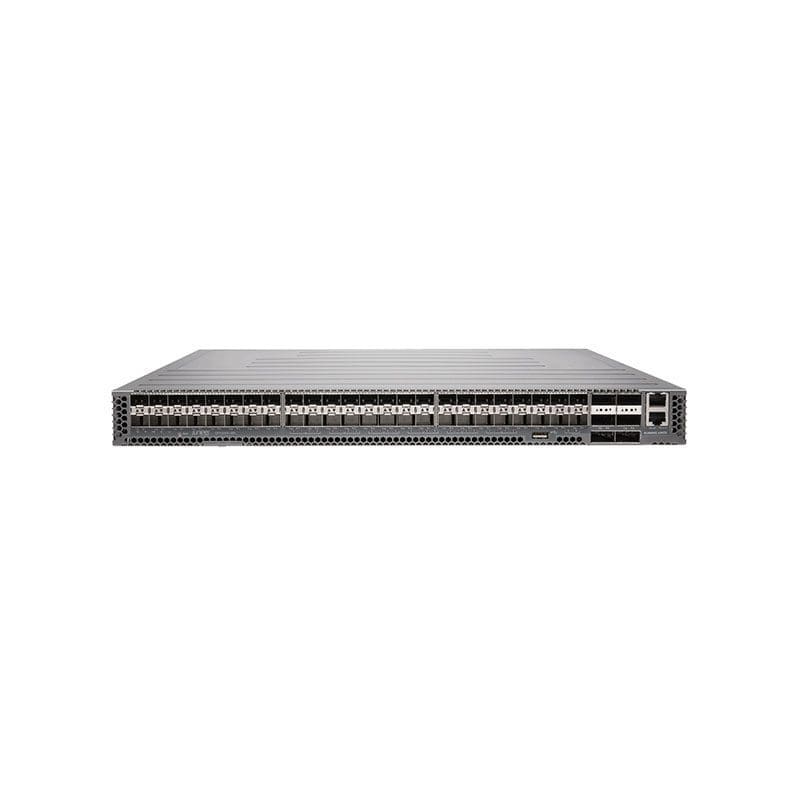

Juniper Networks QFX Series QFX5200-48Y switch 48 ports managed rack mountable
Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks QFX Series
Model :QFX5200-48Y
Packaged Quantity :1
Chassis
Airflow Direction :Back to front airflow
Built-in Devices :32 GB SSD
Processor
Installed Qty :1
Manufacturer :Intel
Clock Speed :2.3 GHZ
RAM
Technology :SDRAM
Installed Size :16 GB
Performance
Performance :Throughput: 1.8 Tbps, Forwarding capacity: 2.1 Bpps
Capacity
Capacity :IPv6 routes (Unicast, host routes): 52000, VLAN IDs: 4096, Link aggregation groups: 128, Maximum member ports per LAG: 64, ARP entries: 32000, IPv4 routes (Unicast, host routes): 104000, IPv4 routes (Multicast): 52000, IPv6 routes (Unicast, prefixes): 98000, QoS hardware queues per port: 10, MSTP instances: 64, GRE tunnels: 1024, MPLS labels: 16000, IPv6 routes (Multicast): 28000, IPv4 routes (Unicast, prefixes): 128000, VSTP instances: 253
Networking
Type :Switch
Subcategory :Network hubs and switches
Subtype :25 Gigabit Ethernet
Form Factor :Rack-mountable
Ports Qty :48
Routing Protocol :OSPFv3, RIP-2, PIM-SSM, IGMPv2, Static IP routing, VRRP, RIP-1, OSPFv2, MLDv2, MLD, IGMP, PIM-DM, IS-IS, OSPF, PIM-SM, GRE, BGP
MAC Address Table Size :136K entries
Jumbo Frame Support :9216 bytes
Manageable :Yes
Remote Management Protocol :SSH, SNMP 1, CLI, SNMP 2, Telnet, SNMP 3
Features :MLD snooping, Encapsulated Remote SPAN (ERSPAN), Rapid Spanning Tree Protocol (RSTP) support, MPLS support, Data Center Bridging (DCB), Unicast Reverse Path Forwarding (URPF), Multicast Source Discovery Protocol (MSDP), MAC address filtering, IPv4 support, Junos XML management protocol, Storm Control, Generic Routing Encapsulation (GRE), High Availability, Zero-touch provisioning (ZTP), IGMP snooping, Back to front airflow, Label Distribution Protocol (LDP), Denial of Service (DoS) protection, sFlow v5, Spanning Tree Protocol (STP) support, ARP support, Loop prevention, Port-based VLAN, Class of Service (CoS), Data Center Bridging Exchange (DCBX) support, Switched Port Analyzer (SPAN), VLAN support, FCoE support, Uplink Failure Detection (UFD), Low-latency queuing (LLQ), Weighted Random Early Detection (WRED), Firewall protection, IGMP querier, IPv6 support, 22MB packet buffer, DHCP relay, DHCP snooping, Remote Switch Port Analyzer (RSPAN), Management Information Base (MIB), Link Aggregation, VLAN Spanning Tree Protocol (VSTP), Smoothed Deficit Weighted Round Robin (SDWRR), Access Control List (ACL) support, VLAN Trunking Protocol (VTP), Root Guard, Routed VLAN Interface (RVI), Traffic shaping, Redundant hot swappable fans, Quality of Service (QoS), Bidirectional Forwarding Detection (BFD), BPDU Guard, IGMP proxy, Multiple Spanning Tree Protocol (MSTP) support
Compliant Standards :IEEE 802.1w, IEEE 802.1ab (LLDP), IEEE 802.3ad (LACP), IEEE 802.1Qaz, IEEE 802.1s, IEEE 802.3x, IEEE 802.1ad, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1Qbg, IEEE 802.1D
Ports
Qty :48
Type :10/25 Gigabit SFP+ / SFP28
Ports (2nd)
Qty :6
Type :40/100 Gigabit QSFP28
Interface Provided
Interfaces :6 x 100Gbit LAN QSFP28, 48 x 10Gbit LAN SFP+, 1 x console RJ-45 management, 1 x management (Gigabit LAN) RJ-45 management, 1 x USB 2.0 Type A
Power Device
Type :Internal power supply
Hot-Plug :Hot-plug
Power Redundancy :Yes
Power Redundancy Scheme :1+1
Installed Qty :2
Max Supported Qty :2
Power Provided :650 watt
Nominal Voltage :AC 120/230 V
Power Consumption Operational :382 watt
80 PLUS Certification :80 PLUS Silver
System Requirements
OS Required :JUNOS
Miscellaneous
Color Category :Gray
Height (Rack Units) :1
Authentication Method :Secure Shell v.2 (SSH2), Secure Shell (SSH), TACACS+, RADIUS
Compliant Standards :EN 55032 Class A, EN55024, EN 61000-3-3, CISPR 32 Class A, CAN/CSA-C22.2 No. 60950-1, RoHS 6/6, EN 60950-1, EN 61000-3-2, VCCI Class A, ETS 300 753, ETSI EN 300 019-2-4, EN 60825-1, ICES-003 Class A, KN32, CISPR 22 Class A, UL 60950-1, EN 55022 Class A, BSMI CNS 13438 Class A, ETSI EN 300 019-2-2, ETSI EN 300 019, ETSI EN 300 019-2-1, CISPR 24, WEEE, EN 300 386, FCC CFR47 Part 15 B Class A, China RoHS, ETSI EN 300 019-2-3, ETSI, AS/NZS CISPR 32 Class A, KN35, IEC 60950-1
Dimensions & Weight
Width :17.4 inch
Depth :20.3 inch
Height :1.7 inch
Weight :21.16 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :95 degree Fahrenheit
Min Storage Temperature :-40 degree Fahrenheit
Max Storage Temperature :158 degree Fahrenheit
Humidity Range Operating :5 – 93% (non-condensing)
Humidity Range Storage :5 – 93% (non-condensing)
