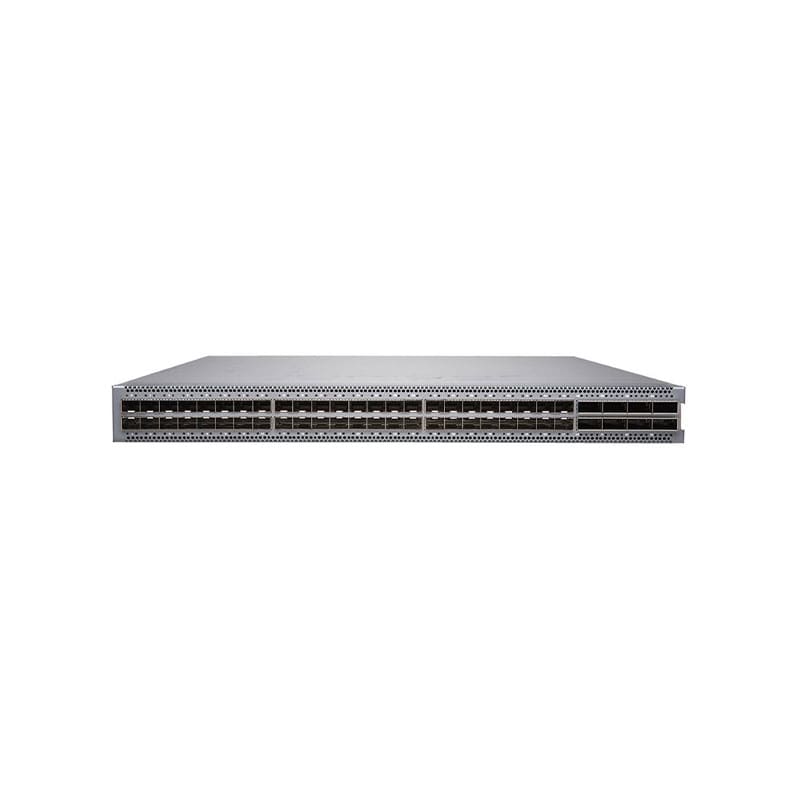

QFX5120-48YM-DC-AO Technical Specifications
Juniper Qfx5120 Macsec Aes-256 48X25G+8X100G 1U Dc Port Side Intake An
Manufacturer: Juniper Networks, Inc
Brand Name: Juniper
Product Series: QFX
Product Model: QFX5120-48YM
Product Name: QFX5120-48YM Ethernet Switch
Product Type: Ethernet Switch
Interfaces/Ports
Uplink Port: Yes
Modular: Yes
Port/Expansion Slot Details
48 x 25 Gigabit Ethernet Expansion Slot
8 x 100 Gigabit Ethernet Expansion Slot
Media & Performance
Media Type Supported: Optical Fiber
Ethernet Technology
25 Gigabit Ethernet
100 Gigabit Ethernet
Network Technology
25GBase-X
100GBase-X
I/O Expansions
Number of Total Expansion Slots:56
Expansion Slot: Type
SFP28
QSFP28
Network & Communication
Layer Supported: 3
Management & Protocols
Manageable: Yes
Power Description
Power Source DC
Redundant Power Supply Supported: Yes:
Number of Power Supplies Supported: 2
Power Consumption 650 W
Physical Characteristics
Compatible Rack Unit: 1U
Form Factor: Rack-mountable
Height: 1.7″
Width: 17.4″
Depth: 20.5″
Weight (Approximate): 24.80 lb
