QFX5120-48Y-AFO-T Technical Specifications

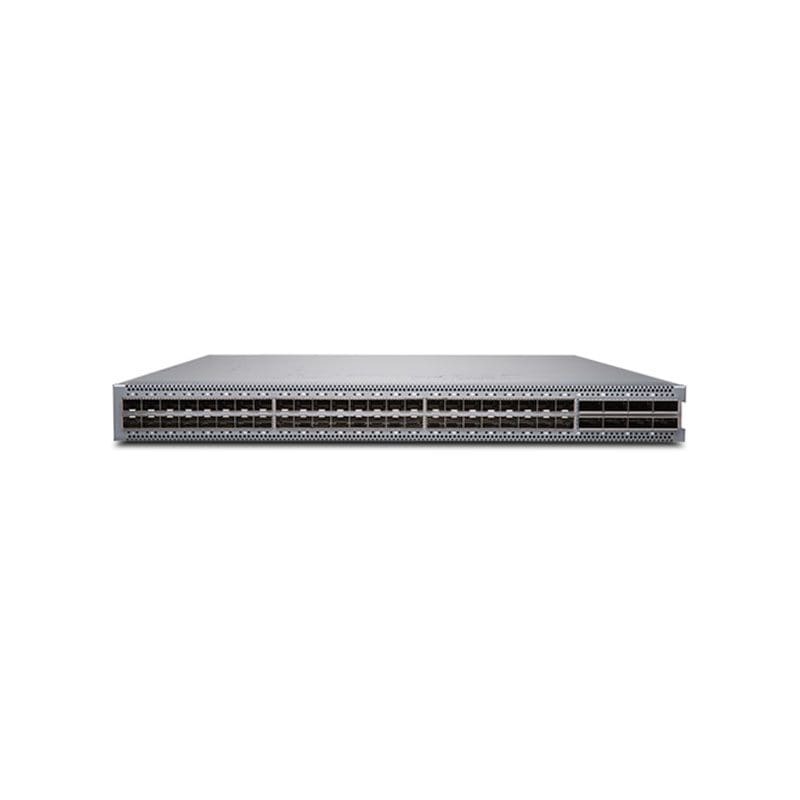

Juniper Networks QFX Series QFX5120-48Y switch 48 ports managed rack mountable
Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks QFX Series
Model :QFX5120-48Y
Packaged Quantity :1
Chassis
Airflow Direction :Front to back airflow
Built-in Devices :50 GB SSD
Processor
Installed Qty :1
Manufacturer :Intel
Clock Speed :2.2 GHZ
RAM
Installed Size :16 GB
Flash Memory
Installed Size :64 GB
Performance
Performance :Switching capacity: 1.31 Bpps, Switching capacity: 2 Tbps
Capacity
Capacity :IPv6 hosts: 104000, Mirroring destination ports per switch: 4, Virtual interfaces (VLANs): 4093, ARP entries: 64000, IPv4 hosts: 208000, ECMP paths: 64, IPv4 prefixes (Unicast): 351000, Maximum number of mirroring sessions: 4, Mirroring destination VLANs per switch: 4, Multiple Spanning Tree Protocol instances: 64, Queues per port: 10, IPv4 routes (Multicast): 104000, VLAN Spanning Tree Protocol instances
