QFX5110-48S-DC-AFO Technical Specifications

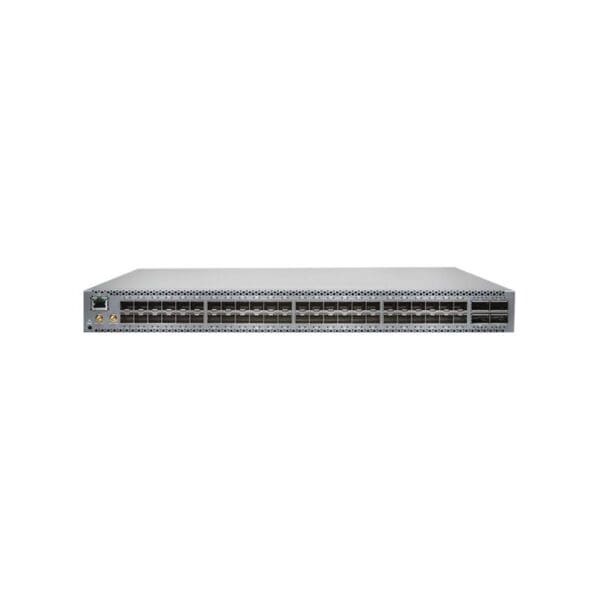

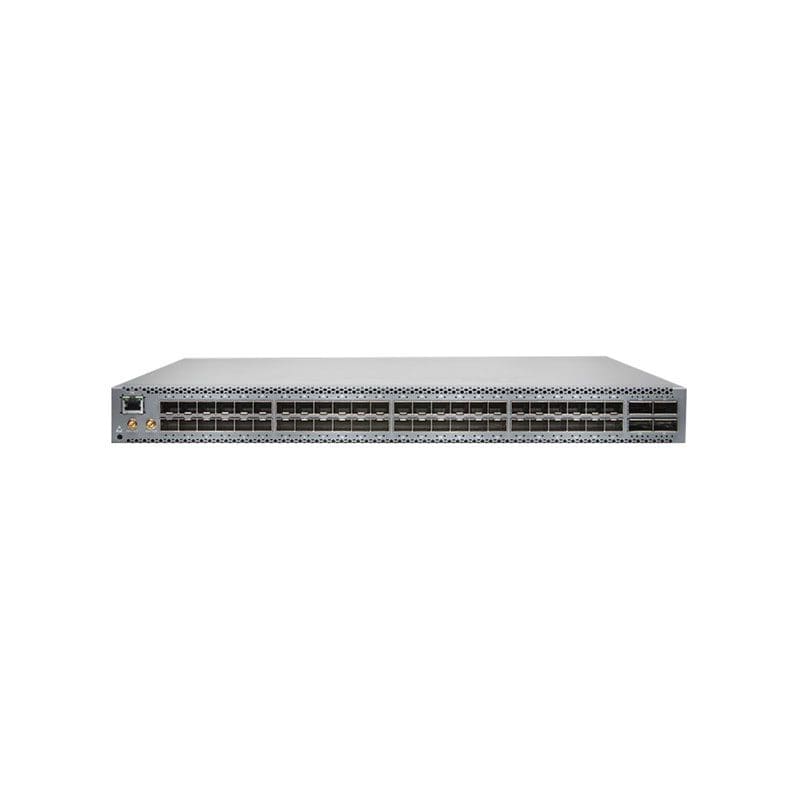

Juniper QFX Series QFX5110-48S switch 48 ports Managed Rack Mountable
Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks QFX Series
Model :QFX5110-48S
Packaged Quantity :1
Chassis
Airflow Direction :Front to back airflow
Built-in Devices :64 GB SSD
Processor
Manufacturer :Intel
Clock Speed :1.8 GHZ
RAM
Installed Size :16 GB
Performance
Performance :Switching capacity: 1.32 Bpps, Switching capacity: 1.76 Tbps
Capacity
Capacity :Firewall egress filters: 1022, MSTP instances: 64, ARP entries: 48000, VLAN IDs: 4093, IPv6 routes (Multicast): 52000, IPv4 routes (Multicast): 104000, Jumbo frame size: 9216, IPv6 routes (Unicast): 84000, Firewall ingress filters: 6142, QoS hardware queues per port: 12, VSTP instances: 253, MAC address entries: 288000, Maximum member ports per LAG: 32, IPv4 routes (Unicast): 128000, LAG groups: 104
