Refurbished QFX5100-48T-DC-AFI Technical Specifications

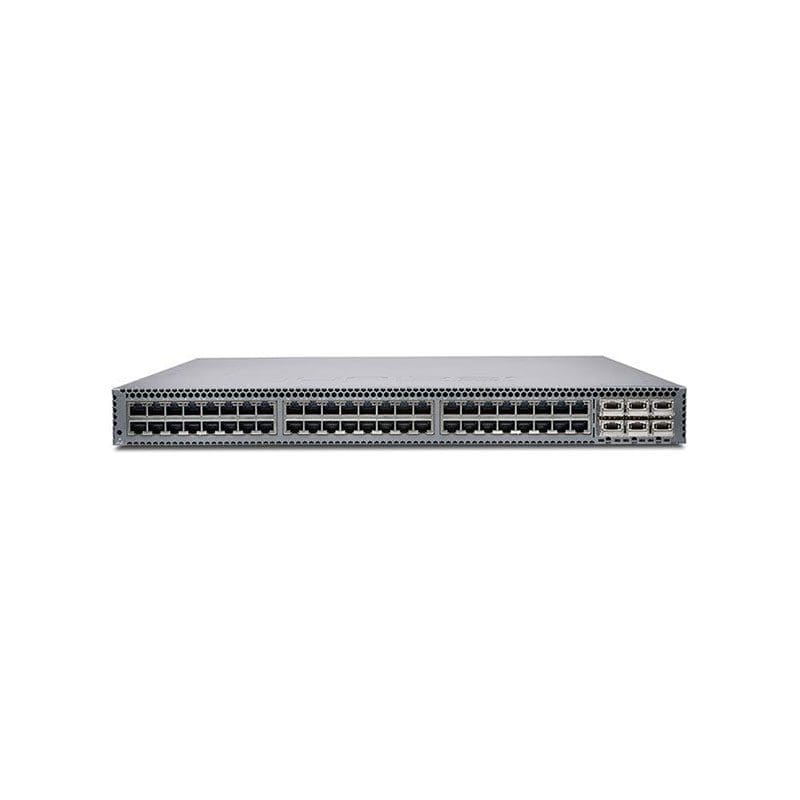

Juniper QFX5100-48T-DC-AFI Layer 3 Switch
General Information
Manufacturer Juniper Networks, Inc
Manufacturer Part Number QFX5100-48T-DC-AFI
Manufacturer Website Address http://www.juniper.net
Brand Name Juniper
Product Series QFX5100
Product Model QFX5100-48T-DC-AFI
Product Name QFX5100-48T-DC-AFI Layer 3 Switch
Product Type Layer 3 Switch
Technical Information
Interfaces/Ports
Total Number of Network Ports 48
Token Ring Port No
LRE Port No
Bypass No
Modular No
Management Port Yes
USB Yes
Number of Network (RJ-45) Ports 48
Port/Expansion Slot Details 48 x 10 Gigabit Ethernet Network, 6 x 40 Gigabit Ethernet Expansion Slot
Media & Performance
Media Type Supported Twisted Pair
Ethernet Technology 10 Gigabit Ethernet, 40 Gigabit Ethernet
Network Technology 10GBase-T, 40GBase-X
I/O Expansions
Number of Total Expansion Slots 6
Expansion Slot Type QSFP+
Network & Communication
Layer Supported 3
Management & Protocols
Manageable Yes
Management
Command Line Interface (CLI)
Web-based Management
Telnet
SNMP v1/2/3
sFlow
MIB
VLAN
DHCP
QoS
Memory
Standard Memory 8 GB
Power Description
PoE (RJ-45) Port No
Power Source Power Supply
Redundant Power Supply Supported Yes
Physical Characteristics
Compatible Rack Unit 1U
Form Factor Rack-mountable
Height 1.7″
Width 21.5″
Depth 17.4″
Weight (Approximate) 24.80 lb
Miscellaneous
Package Contents
QFX5100-48T-DC-AFI Layer 3 Switch
2 x DC Power Supply
Certifications & Standards Safety:
CAN/CSA-C22.2 No. 60950-1 (2007) Information Technology Equipment-Safety
UL 60950-1 (2nd Ed.) Information Technology Equipment-Safety
EN 60950-1 (2005) Information Technology Equipment-Safety
IEC 60950-1 (2005) Information Technology Equipment-Safety (All country deviations): CB Scheme report.
EN 60825-1 +A1+A2 (1994) Safety of Laser Products-Part 1: Equipment Classifcation
GR-63-Core (2006) Network Equipment, Building Systems (NEBS) Physical Protection
GR-1089-Core (2006) EMC and Electrical Safety for Network Telecommunications Equipment
SR-3580 (1995) NEBS Criteria Levels (Level 3)
EMC:
FCC 47CFR, Part 15 Class A (2009) USA Radiated Emissions
EN 55022 Class A (2006)+ A1 2007 European Radiated Emissions
VCCI Class A (2007) Japanese Radiated Emissions
BSMI CNS 13438 and NCC C6357 Taiwan Radiated Emissions
AS/NZS CISPR22:2009
IEEE Standards:
802.1D
802.1w
802.1
802.1Q
802.1p
802.1ad
802.3ad
802.1AB
802.3x
802.1Qbb
802.1Qaz
802.1Qau
802.1Qbg
Environmentally Friendly Yes
Environmental Certification RoHS-6, WEEE, REACH, 80 Plus Silver, China RoHS
