Refurbished QFX5100-48T-AFI-T Technical Specifications

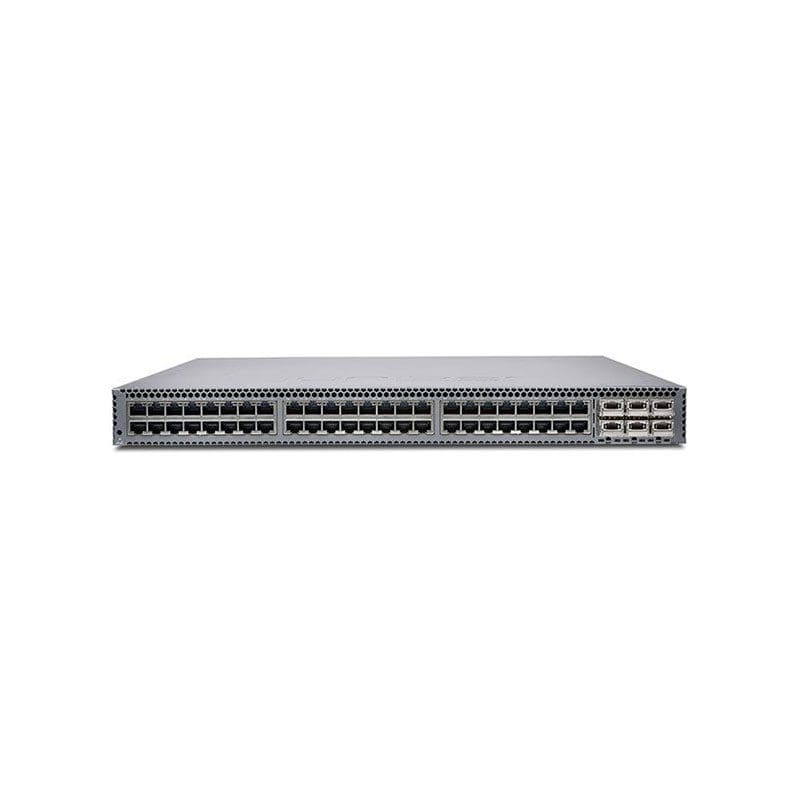

Juniper Networks QFX Series QFX5100-48T switch 48 ports managed rack mountable
Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks QFX Series
Model :QFX5100-48T
Packaged Quantity :1
Chassis
Airflow Direction :Back to front airflow
Built-in Devices :32 GB SSD
Processor
Installed Qty :1
Manufacturer :Intel
Clock Speed :1.5 GHZ
RAM
Installed Size :8 GB
Performance
Performance :Switching capacity: 1.08 Bpps, Switching capacity: 1.44 Tbps
Capacity
Capacity :IPv4 routes (Unicast): 128000, IPv4 hosts: 208000, IPv6 routes (Unicast): 64000, IPv6 routes (Multicast): 52000, IPv4 routes (Multicast): 104000, Multiple Spanning Tree Protocol instances: 64, Virtual interfaces (VLANs): 4091, VLAN Spanning Tree Protocol instances: 253, ARP entries: 48000
Networking
Type :Switch
Subcategory :Network hubs and switches
Subtype :10 Gigabit Ethernet
Form Factor :Rack-mountable
Ports Qty :48
Fibre Channel :FC-BB-5, FC-BB-6
Advanced Switching :Layer 3
Routing Protocol :IGMP, Bidirectional Forwarding Detection (BFD), IGMPv2, CIDR, VRRP, ECMP, Static IP routing, IGMPv3, RIP-2, PIM-SM, MSDP, RIP, OSPF
MAC Address Table Size :288K entries
Jumbo Frame Support :9216 bytes
Manageable :Yes
Remote Management Protocol :RMON, SNMP 1, SSH, SNMP 3, SNMP 2, CLI, Telnet
Features :Redundant hot swappable fans, ARP support, IGMP snooping, VLAN support, IPv6 support, Trunking, DHCP snooping, MAC address filtering, DoS attack prevention, Access Control List (ACL) support, High Availability, VLAN Spanning Tree Protocol (VSTP), VPN support, Flow control, BOOTP support, Management Information Base (MIB), Trivial File Transfer Protocol (TFTP) support, SNTP support, Loop prevention, Data Center Bridging Exchange (DCBX) support, Spanning Tree Protocol (STP) support, Non-Stop Routing (NSR), 12 MB shared buffer, Weighted Random Early Detection (WRED), Tunneling, Rapid Spanning Tree Protocol (RSTP) support, RARP support, Data Center Bridging (DCB), Back to front airflow, FCoE forwarding, Quality of Service (QoS), Strict Priority Queuing (SPQ), Class of Service (CoS), Store and forward, Multiple Spanning Tree Protocol (MSTP) support, Dynamic ARP Inspection (DAI), DHCP relay, DHCP server, Redundant trunk group (RTG), Low-latency queuing (LLQ), Graceful Route Engine Switchover (GRES), Non-Stop Bridging (NSB), sFlow, IPv4 support, Cut-through
Compliant Standards :IEEE 802.1ad, IEEE 802.1Q, IEEE 802.3ad (LACP), IEEE 802.1Qaz, IEEE 802.1w, IEEE 802.1Qau, Shaped Deficit Weighted Round-Robin (SDWRR), IEEE 802.1Qbg, IEEE 802.1p, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.3x, IEEE 802.1Qbb
Ports
Qty :48
Type :100/1000/10000
Ports (2nd)
Qty :6
Type :40 Gigabit QSFP+ (breakout compatible)
Interface Provided
Interfaces :48 x 10GBase-T RJ-45, 1 x RJ-45 management, 1 x USB management, 1 x console management, 1 x SFP management, 6 x QSFP+ (breakout compatible)
Power Device
Type :Internal power supply
Hot-Plug :Hot-plug
Power Redundancy :Yes
Power Redundancy Scheme :1+1
Installed Qty :2
Max Supported Qty :2
Nominal Voltage :AC 120/230 V
Power Consumption Operational :335 watt
80 PLUS Certification :80 PLUS
System Requirements
OS Required :JUNOS
Miscellaneous
Color Category :Gray
TAA Compliant :Yes
Height (Rack Units) :1
Encryption Algorithm :MD5, AES
Authentication Method :TACACS+, Secure Shell (SSH), RADIUS, Secure Shell v.2 (SSH2)
Compliant Standards :REACH, NEBS level 3, BSMI CNS 13438, UL 60950-1, China RoHS, FCC CFR47 Part 15, NCC, GR-1089-CORE, AS/NZS CISPR 22, IEC 60950-1, WEEE, EN55022 Class A, VCCI Class A, EN 60950-1, CAN/CSA C22.2 No. 60950-1, GR-63-CORE, RoHS 6/6, EN 60825-1, CAN/CSA-C22.2 No. 60950-1
Dimensions & Weight
Width :17.4 inch
Depth :21.5 inch
Height :1.7 inch
Weight :24.69 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Min Storage Temperature :-40 degree Fahrenheit
Max Storage Temperature :158 degree Fahrenheit
Humidity Range Operating :5 – 90% (non-condensing)
Humidity Range Storage :0 – 95% (non-condensing)
