QFX5100-24Q-AFI Technical Specifications

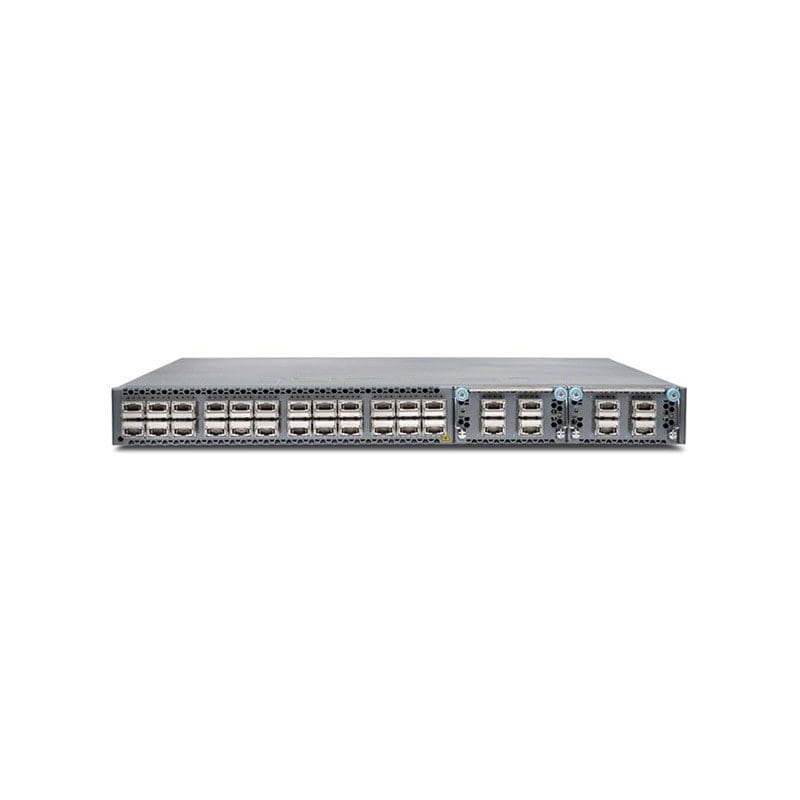

Juniper Networks QFX Series QFX5100-24Q switch 24 ports managed rack mountable
Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks QFX Series
Model :QFX5100-24Q
Packaged Quantity :1
Chassis
Airflow Direction :Back to front airflow
Built-in Devices :32 GB SSD
Installed Devices / Modules Qty :0
Supported Devices / Modules Qty :2
Processor
Installed Qty :1
Manufacturer :Intel
Clock Speed :1.5 GHZ
RAM
Installed Size :8 GB
Performance
Performance :Switching capacity: 2.56 Tbps, Switching capacity: 1.44 Bpps
Capacity
Capacity :IPv6 routes (Multicast): 52000, Multiple Spanning Tree Protocol instances: 64, IPv4 hosts: 208000, Virtual interfaces (VLANs): 4091, IPv4 routes (Unicast): 128000, IPv6 routes (Unicast): 64000, VLAN Spanning Tree Protocol instances: 253, ARP entries: 48000, IPv4 routes (Multicast): 104000
