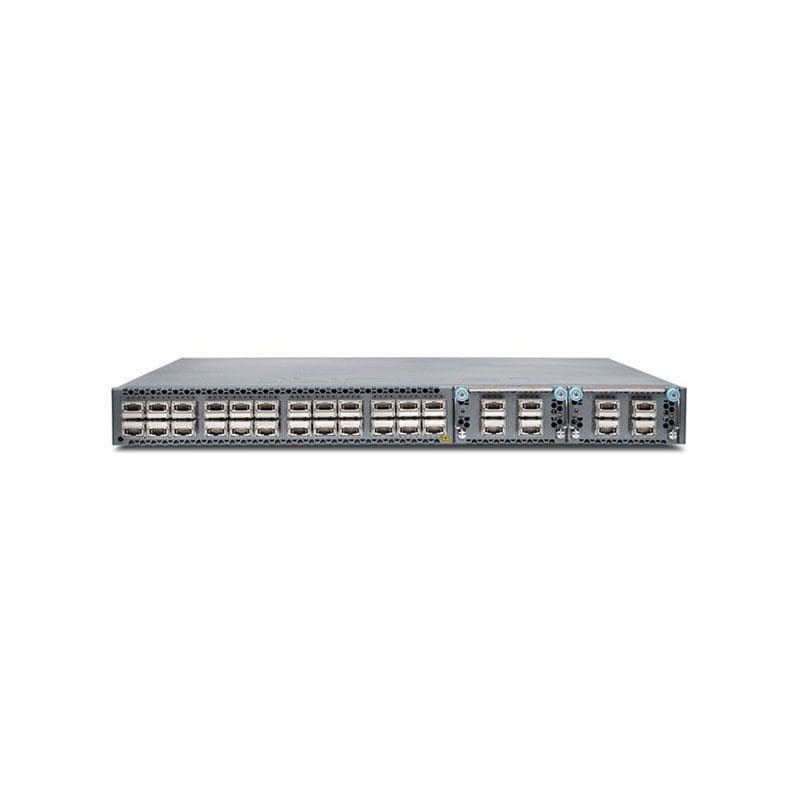

Refurbished QFX5100-24Q-3AFO-T Juniper QFX5100-24Q-3AFO

Refurbished QFX5100-24Q-3AFO-T Overview

The highly flexible, high-performance Juniper Networks® QFX5100 line of switches provides the foundation for today’s and tomorrow’s dynamic data center. As a critical enabler for IT transformation, the data center network supports cloud and software defined networking (SDN) adoption, as well as rapid deployment and delivery of applications. Mission-critical applications, network virtualization, and integrated or scale-out storage are driving the need for more adaptable networks. With its diverse set of deployment options, including fabric, Layer 3, and spine and leaf, the QFX5100 is the universal building block for data center switching architectures, enabling users to easily adapt as requirements change over time.

$11,199

Buy Now
Availability: In Stock
SKU:QFX5100-24Q-3AFO-T-RF
Brand:

Refurbished QFX5100-24Q-3AFO-T Technical Specifications

Juniper QFX5100-24Q-3AFO Layer 3 Switch

General Information
Manufacturer Juniper Networks, Inc
Manufacturer Part Number QFX5100-24Q-3AFO-T
Brand Name Juniper
Product Series QFX5100
Product Model QFX5100-24Q-3AFO
Product Name QFX5100-24Q-3AFO Layer 3 Switch
Product Type Layer 3 Switch
Technical Information
Interfaces/Ports
Token Ring Port No
LRE Port No
Bypass No
Modular No
Management Port Yes
USB Yes
Port/Expansion Slot Details 24 x 40 Gigabit Ethernet Expansion Slot
Media & Performance
Ethernet Technology 40 Gigabit Ethernet
I/O Expansions
Number of Total Expansion Slots 26
Expansion Slot Type QSFP+
Network & Communication
Layer Supported 3
Management & Protocols
Manageable Yes
Management
Command Line Interface (CLI)
Web-based Management
Telnet
SNMP v1/2/3
sFlow
MIB
VLAN
DHCP
QoS
Memory
Standard Memory 8 GB
Reliability
MTBF 200000 Hour
Power Description
PoE (RJ-45) Port No
Input Voltage 120 V AC, 230 V AC
Power Source Power Supply
Redundant Power Supply Supported Yes
Physical Characteristics
Compatible Rack Unit 1U
Form Factor Rack-mountable
Height 1.7″
Width 20.5″
Depth 17.4″
Weight (Approximate) 21.60 lb
Miscellaneous
Certifications & Standards
TAA Compliant
Safety:
CAN/CSA-C22.2 No. 60950-1 (2007) Information Technology Equipment-Safety
UL 60950-1 (2nd Ed.) Information Technology Equipment-Safety
EN 60950-1 (2005) Information Technology Equipment-Safety
IEC 60950-1 (2005) Information Technology Equipment-Safety (All country deviations): CB Scheme report.
EN 60825-1 +A1+A2 (1994) Safety of Laser Products-Part 1: Equipment Classifcation
GR-63-Core (2006) Network Equipment, Building Systems (NEBS) Physical Protection
GR-1089-Core (2006) EMC and Electrical Safety for Network Telecommunications Equipment
SR-3580 (1995) NEBS Criteria Levels (Level 3)
EMC:
FCC 47CFR, Part 15 Class A (2009) USA Radiated Emissions
EN 55022 Class A (2006)+ A1 2007 European Radiated Emissions
VCCI Class A (2007) Japanese Radiated Emissions
BSMI CNS 13438 and NCC C6357 Taiwan Radiated Emissions
AS/NZS CISPR22:2009
IEEE Standards:
802.1D
802.1w
802.1
802.1Q
802.1p
802.1ad
802.3ad
802.1AB
802.3x
802.1Qbb
802.1Qaz
802.1Qau
802.1Qbg
Environmentally Friendly Yes
Environmental Certification RoHS, WEEE, REACH
