Refurbished QFX3100-GBE-ACR Technical Specifications

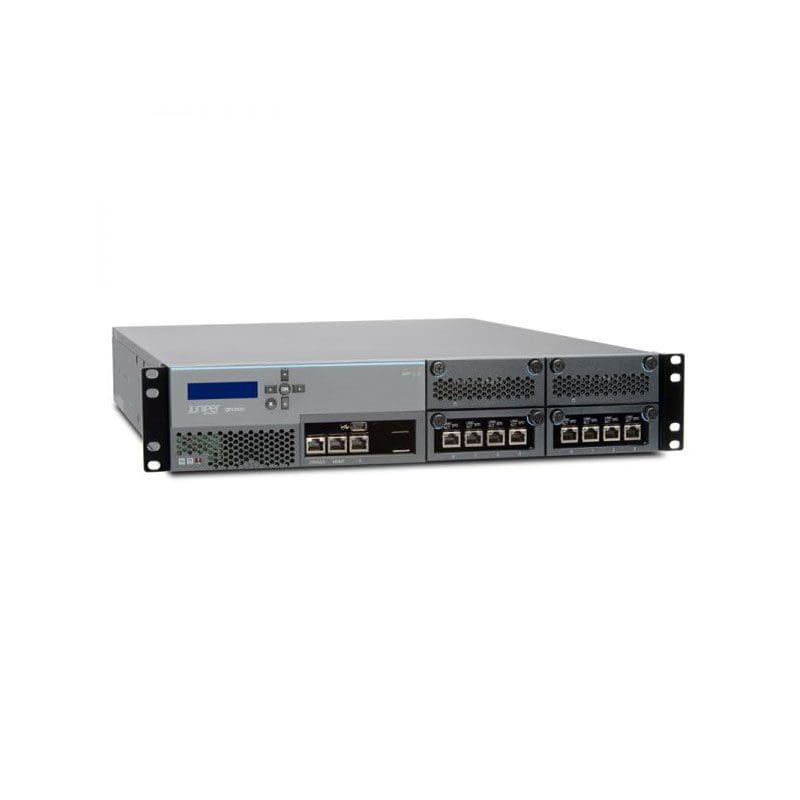

Juniper Networks QFX3100 router rack mountable
Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks
Model :QFX3100
Packaged Quantity :1
Chassis
Airflow Direction :Front to back airflow
Built-in Devices :RAID controller
Installed Devices / Modules Qty :4
Supported Devices / Modules Qty :4
Processor
Installed Qty :2
Manufacturer :Intel
Clock Speed :2.1 GHZ
RAM
Installed Size :36 GB
Hard Drive
Capacity :4 TB
Networking
Type :Router
Form Factor :Rack-mountable
Connectivity Technology :Wired
Data Link Protocol :Gigabit Ethernet
Remote Management Protocol :SNMP 1, SNMP 2, SSH, CLI, SNMP 3
Status Indicators :LCD display
Key Features :USB port
Features :Modular design, Redundant hot swappable fans, Front to back airflow
Expansion Slots
Expansion Slots :2 (total) / 0 (free) x expansion slot
Interface Provided
Interfaces :USB: 1 x 4 pin USB Type A, Management: 2 x Ethernet – RJ-45, 8 x 1000Base-T – RJ-45, Management: 1 x console
Power Device
Type :Internal power supply
Hot-Plug :Hot-plug
Power Redundancy :Yes
Installed Qty :2
Max Supported Qty :2
Power Provided :560 watt
Nominal Voltage :AC 120/230 V
Frequency Required :50/60 hertz
Power Consumption Operational :476 watt
System Requirements
OS Required :JUNOS
Miscellaneous
Rack Mounting Kit :Included
Height (Rack Units) :2
MTBF :96,125 Hours
Compliant Standards :CAN/CSA C22.2 No. 60950-1, EN 60825-1, RoHS 5/6, EN 60950-1, FCC CFR47 Part 15, EN55024, WEEE, UL 60950-1 Second Edition, EN300-386, IEC 60950-1, REACH, CISPR 22, VCCI Class A, EN55022 Class A, ErP Ready, BSMI CNS 13438, EN 300 386, CAN/CSA-C22.2 No. 60950-1
Dimensions & Weight
Width :17.5 inch
Depth :23.8 inch
Height :3.5 inch
Weight :41.2 lbs
Environmental Parameters
Min Operating Temperature :41 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :8 – 90% (non-condensing)
