QFX10002-36Q Technical Specifications

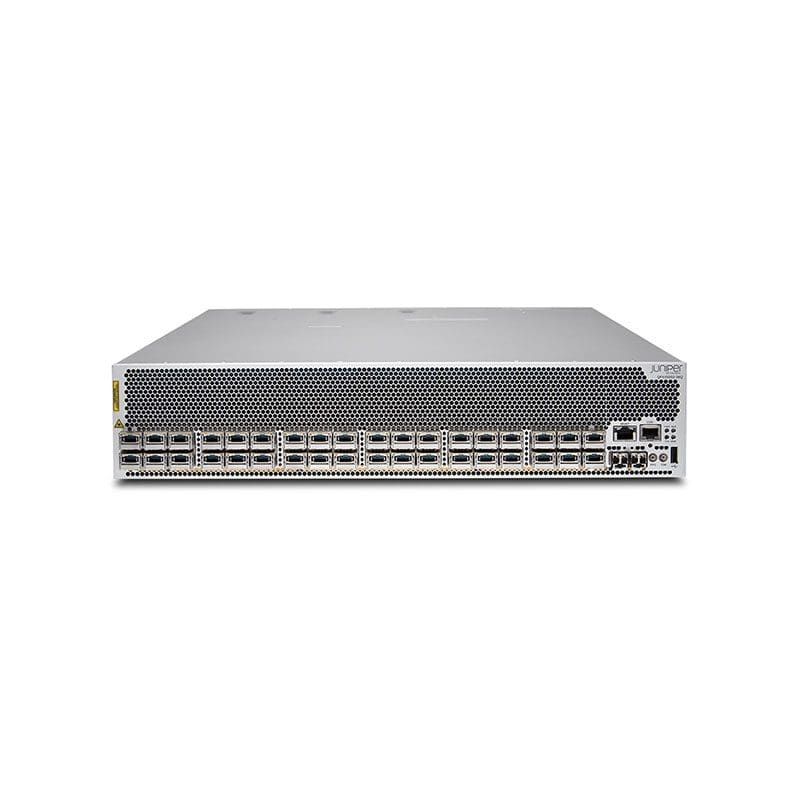

Juniper QFX10002-36Q Ethernet Switch
Capacity
Type :ARP entries
Value :144000
Type :Equal-Cost Multipathing (ECMP) ways
Value :64
Type :GRE tunnels
Value :4096
Type :IPv4 forwarding information base (FIB)
Value :256000
Type :IPv4 routes
Value :2000000
Type :IPv4 routes (Multicast)
Value :128000
Type :IPv6 forwarding information base (FIB)
Type :IPv6 routes
Type :IPv6 routes (Multicast)
Type :Queues per port
Value :8
Type :Virtual interfaces (VLANs)
Value :4000
Type :Virtual output queues
Value :384000
Dimensions & Weight
Depth :31 in
Height :3.5 in
Weight :50.71 lbs
Width :17.4 in
Environmental Parameters
Humidity Range Operating :5 – 90% (non-condensing)
Humidity Range Storage :5 – 95% (non-condensing)
Max Operating Temperature :104 °F
Max Storage Temperature :158 °F
Min Operating Temperature :32 °F
Min Storage Temperature :-40 °F
