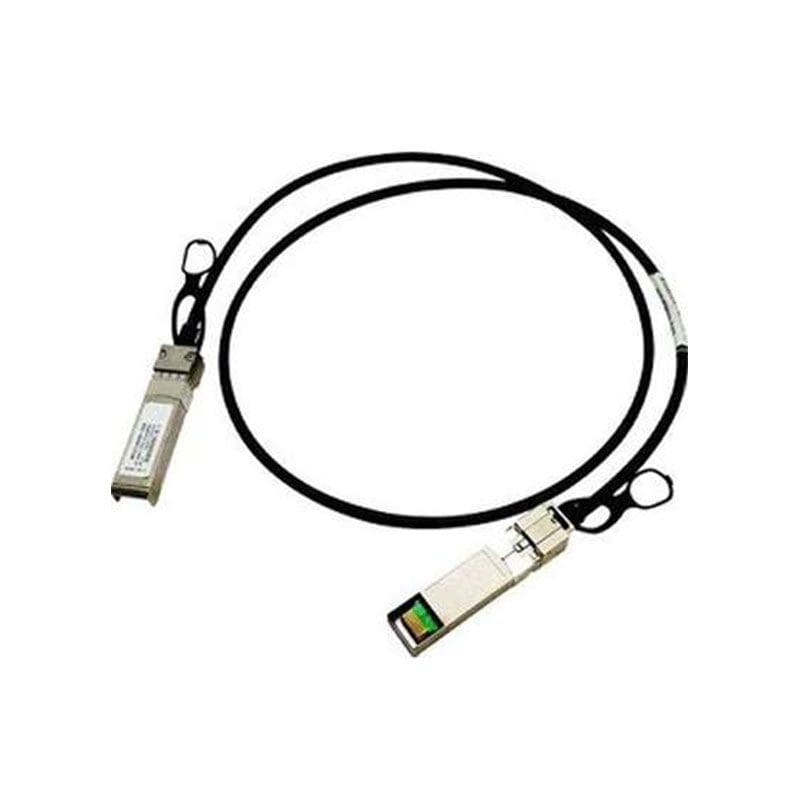

QFX-SFP-DAC-1M Technical Specifications
Juniper Networks SFP+ 10 Gigabit Ethernet Direct Attach Copper cable
Manufacturer Juniper Networks, Inc
Manufacturer Part Number QFX-SFP-DAC-1M
Brand Name Juniper
Product Name SFP+ Network Cable
Product Type Network Cable
Technical Information
Cable Length 3.28 ft
Connector on First End SFP+ Network
Conductor Copper
Physical Characteristics
Color Black
MSA compliance (SFF, for e.g. SFF-8665): SFF-8431
Signaling rate, each lane: 10-Gbps full-duplex serial transmission
Wire AWG: 30 AWG
Cable type: N/A
Distance: 1 m
Maximum Power consumption (W): 0.5 W
Operating Temperature (range): 0° C to 70° C
Storage temperature: –40° C to 85° C
