QDD-4X100G-LR Technical Specifications

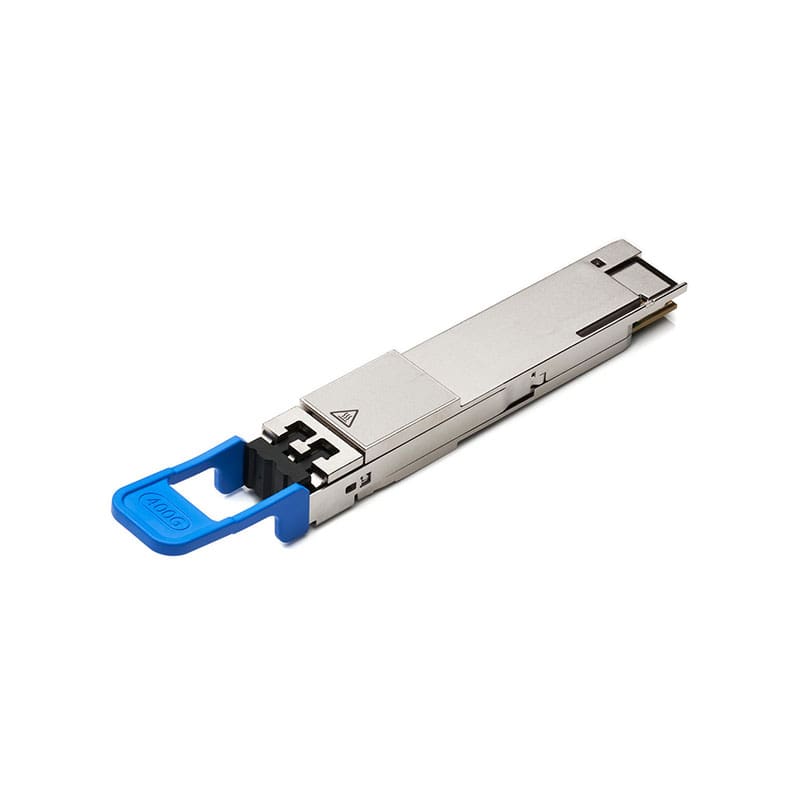

Juniper Networks 4x100GBASE-LR Transceiver
Juniper Networks Compatible
QDD-4X100G-LR
Vendor Name
FS
Form Factor
QSFPDD
Max Data Rate
400Gbps
Wavelength
1310nm
Max Cable Distance
10km
Connector
MTP/MPO-12 (APC)
Media
SMF
Transmitter Type
EML
Receiver Type
PIN
TX Power
-1.9~4.8dBm
RX Power
-8.2~5.8dBm
Powerbudget
6.3dB
Modulation
8x 50G PAM4
Power Consumption
≤ 10W
Extinction Ratio
3.5dB
DDM/DOM
Supported
Commercial Temperature Range
0 to 70°C (32 to 158°F)
DSP
TX and RX
Inbuilt FEC
No
Core Size
G.652/9um
Packaging Technology
COB
