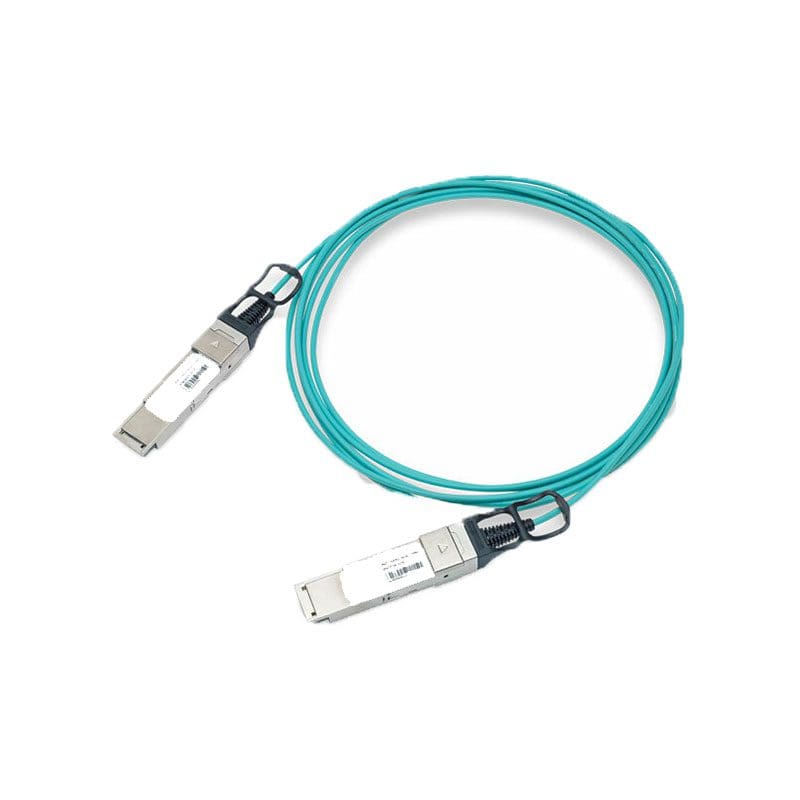

QDD-400G-AOC-3M Technical Specifications
Juniper Fiber Optic Network Cable
Manufacturer Juniper Networks, Inc
Manufacturer Part Number QDD-400G-AOC-3M
Brand Name Juniper
Product Name Fiber Optic Network Cable
Product Type Network Cable
Technical Information
Cable Type Fiber Optic
Cable Length 9.84 ft
Connector on First End QSFP56-DD Network
Features Active
Device Supported Network Device
Data Transfer Rate 400 Gbit/s
Optic Type (Commercial Vs Service Provider Grade): OM4
Digital Diagnostic Monitoring: Tx Power, Rx Power, Bias Current, Case Temperature, Power Supply Voltage
Signaling rate, each lane: 26.5625 GBd PAM4 +/-100 ppm
Cable type: N/A
Distance: 3 m
Maximum Power consumption (W): 12 W
Operating Temperature (range): 0° C to 70° C
Storage temperature: –40° C to 85° C
Typical Weight & Dimensions
Height: 13.5 mm
Width: 18.35 mm
Depth: 93.36 mm
