QD2430-BKK1S Technical Specifications

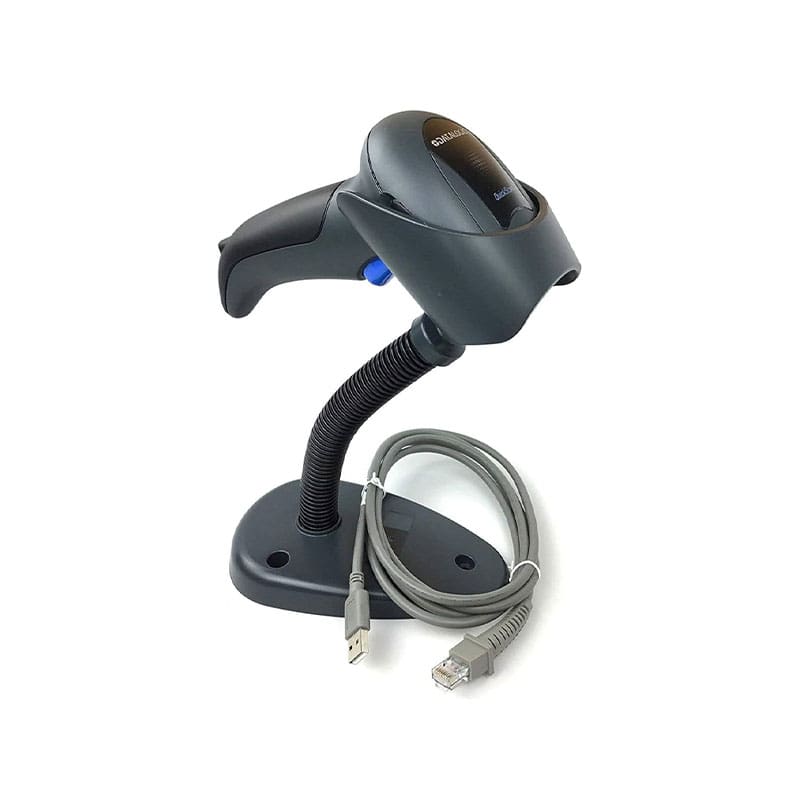

Datalogic QuickScan QD2430 Barcode scanner
Brand: Datalogic
Product Line: Datalogic QuickScan I
Model: QD2430
Manufacturer: Datalogic
Connectivity
Connectivity Technology: Wired
Interface Required: 1 x keyboard wedge, 1 x RS-232, 1 x USB
Power
Electric Current Required: 140 mA (typical), 50 mA (standby)
Software
Software Type: Datalogic Aladdin
Technical Information
Drop Specification: 5 ft to concrete
Form Factor: Handheld
Image Sensor Type: 2D imager
Interface: Keyboard wedge, RS-232, USB
Light Source Wave Length: 610-650 nm
Max Operating Temperature: 122 degree Fahrenheit
Min Operating Temperature: 32 degree Fahrenheit
Included Items
Cables: 1 x USB cable external
Dimensions & Weight
Height: 6.4 inch
Weight: 5.11 ounce
Width: 1.6 inch
Depth: 3.6 inch
