QD2430-BKK1 Technical Specifications

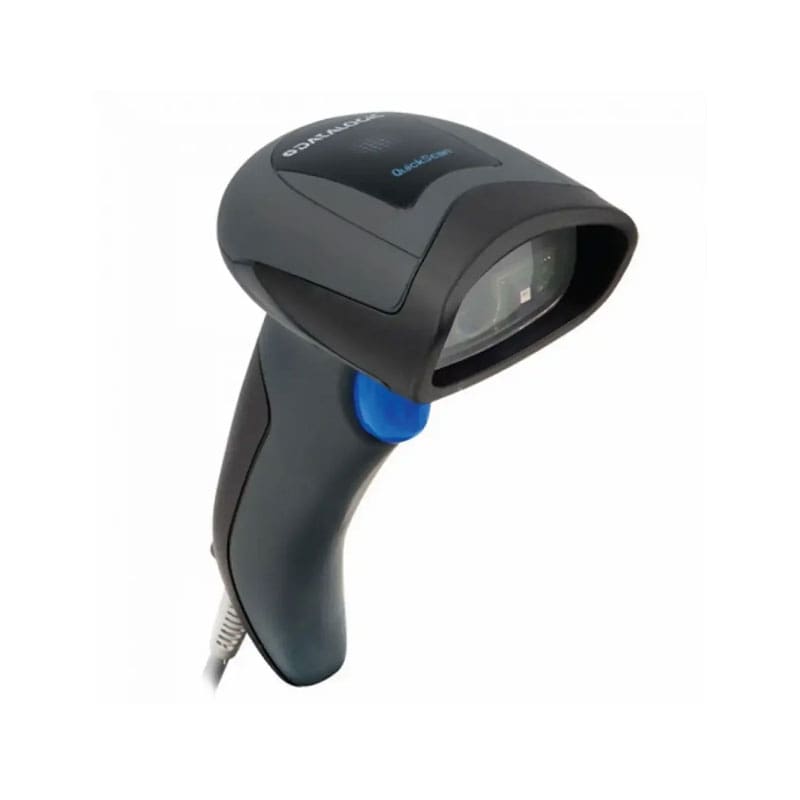

Datalogic QuickScan QD2430 USB Kit Barcode scanner
Brand: Datalogic
Product Line: Datalogic QuickScan I
Model: QD2430
Manufacturer: Datalogic
Connectivity
Connectivity Technology: Wired
Interface Required: 1 x USB
Scanning
Scan Mode: Single-pass
Power
Electric Current Required: 140 mA (typical), 50 mA (standby)
Software
Software Type: Datalogic Aladdin
Technical Information
Drop Specification: 5 ft to concrete
Form Factor: Handheld
Image Sensor Type: 2D imager
Max Operating Temperature: 122 degree Fahrenheit
Min Operating Temperature: 32 degree Fahrenheit
Product Information
Scanner Functionality: Barcode scanner
Features: Green Spot technology
Kit: USB Kit
Max Coverage Angle: 65
Packaged Quantity: 1
TTL Decoding: Decoded
Included Items
Cables: 1 x USB cable – external
Dimensions & Weight
Height: 6.4 inch
Weight: 5.11 ounce
Width: 1.6 inch
Depth: 3.6 inch
