Q1H71B Technical Specifications

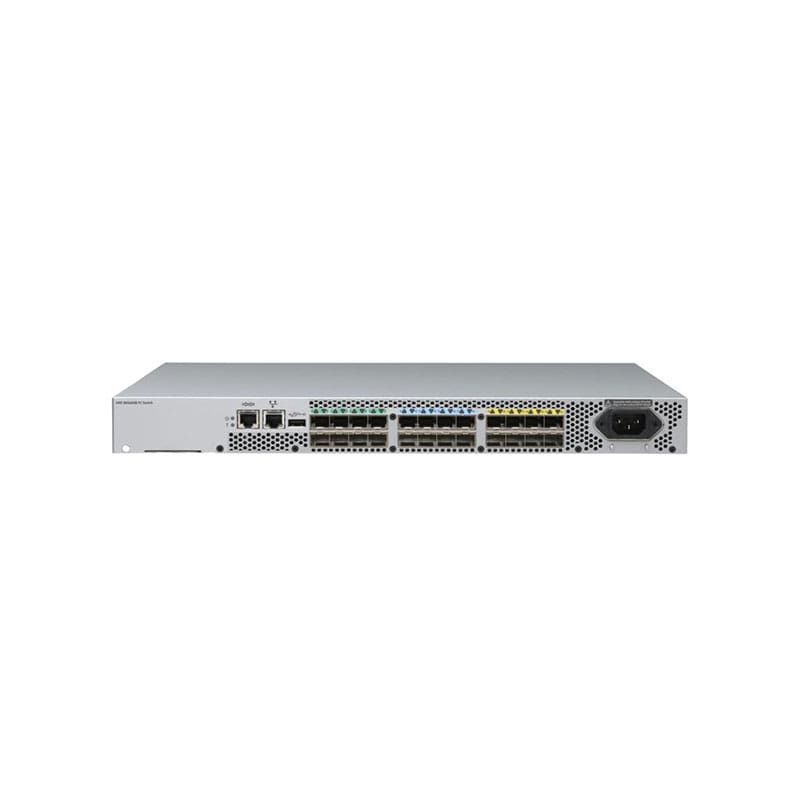

HPE SN3600B 32Gb 24/24 FC Switch
Device Type : Switch – 24 Ports – Managed
Enclosure Type : Rack-mountable 1u
Subtype : Fibre Channel
Ports : 24 X 32gb Fibre Channel Sfp+
Performance : Aggregate Bandwidth: 768 Gbps
Capacity : Maximum Frame Size: 2112
Remote Management Protocol : Snmp 1, Snmp 3, Http, Ssh, Cli
Encryption Algorithm : Ssl
Authentication Method : Radius, Tacacs+, Secure Shell V.2 (ssh2), Dh-chap, Fcap
Features : Full Duplex Capability, Quality Of Service (qos), Class Of Service (cos), Ingress Rate Limiting, Traffic Isolation Zones
Status Indicators : Power, Status
Expansion / Connectivity :
Interfaces :
24 X 32gb Fibre Channel Sfp+
1 X Console ¦ 1 X Usb
Power :
Power Device : Internal Power Supply
Installed Qty : 1
Voltage Required : Ac 120/230 V (50/60 Hz)
Features : Rear-to-front Airflow
