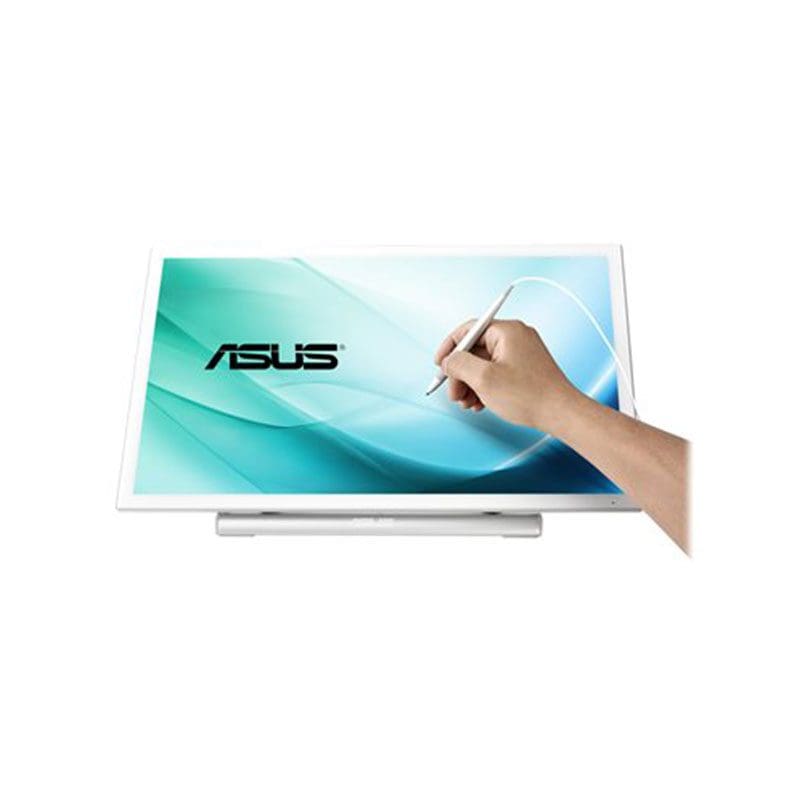

PT201Q Technical Specifications
ASUS 19.5″ Widescreen Pen Touch Monitor
Display
Panel Size 19.5″ / 49.5 cm
Resolution 1920 x 1080
Pixel Pitch 0.225 mm
Brightness 250 cd/m²
Contrast Ratio 3,000:1
Aspect Ratio 16:9
Viewing Angles Horizontal: 178°
Vertical: 178°
Response Time 5 ms (gray to gray)
Display Colors 16.7 million
Touch Screen Yes, capacitive 10-point multi-touch
Video
Color Temperature Selection 5 modes
Gamma Adjustment Yes (support gamma 2.0/2.2/2.4/2.6/1.8)
HDCP Support Yes
Audio
Speakers 2 x 1 W stereo RMS
Other Specifications
Pen Control Touch Pen Technology: Digitizer pen
Pressure Level: 1024 levels
Writing Response: 240 Hz
Convenient Hotkey Volume adjustment
Input selection
Signal Inputs 1 x HDMI
1 x DisplayPort
AV Audio Input HDMI
USB Ports 1 x USB 2.0 type A port
1 x micro-USB port
Digital Signal Frequency Horizontal: 31~68 kHz
Vertical: 50~60 Hz
Power Consumption Power Consumption: <41 W
Power Off Mode: <0.3 W
Voltage 100-240 VAC, 50/60 Hz
Tilt +20° ~ +75°
VESA Hole Pattern 100 x 100 mm
Security Kensington lock
Regulation Approval BSMI, CB, CE, CU, FCC, J-MOSS, PSE, RoHS, VCCI, WEEE, RCM, UL
