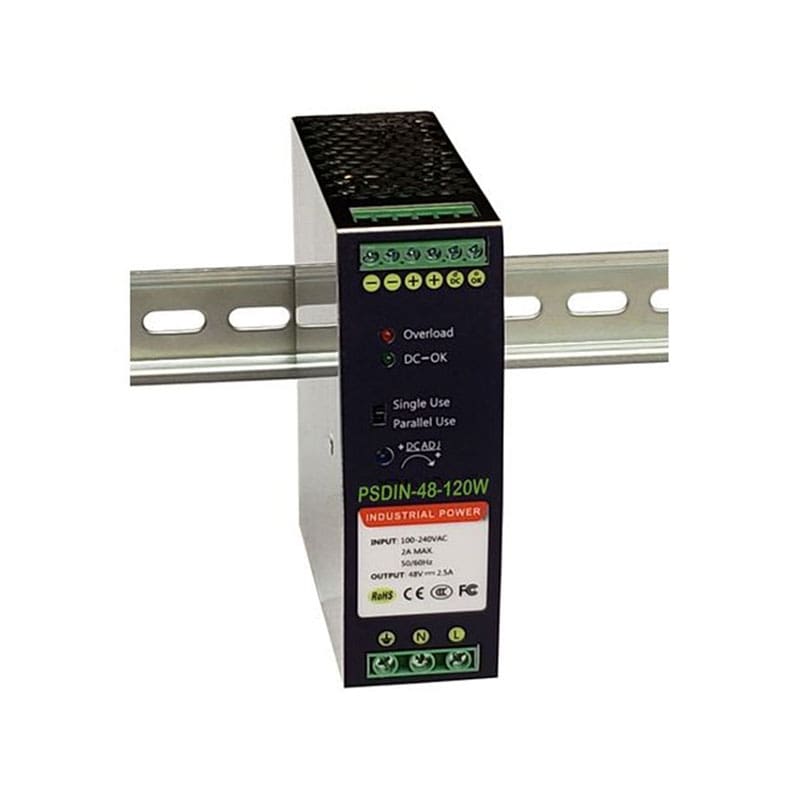

PSDIN-48-120W Technical Specifications
Tycon Power 48V 120W DIN Rail Industrial Power Supply
Input Operating Range: 90-264VAC ; 47-63Hz
Input In-rush Current: 35A Max
Input Current: 2.2A @ 115VAC ; 1.10A @ 230VAC
Output Voltage: 47~ 56VDC (adjustable)
Cont. Load Current: 2.5A
Maximum Output Power: 120W
Peak Power (10sec @ 220VAC): 180W
Line Regulation: +/- 0.5%
Load Regulation: +/- 1%
Voltage Overshoot: <5%
Ripple / Noise: 100mV Peak
Efficiency: 90% Minimum
Dielectric Strength: 1500V rms , 1 min, 10mA Max
Insulation Resistance: 10M Ohms
Protection: Short Circuit, Over-Voltage, Over-Current, Over Power
Alarm Output (“DC” and “OK”): 1A @ 30VDC, 0.5A @ 125VAC. DC OK = Closed, DC Fault = Open
Safety Standards: GB4943 / EN60950-1
EMI Standards: FCC PART 15 CLASS B, EN55022, EN55024
EMS: EN61000-4-x Level 3&4
Operating Temp: -40°C to 70°C (-40°F to 158°F)
Operating Humidity: 5% to 95% non- condensing
Storage Temp: -40°C to 85°C (-40°F to 185°F)
MTBF: 200,000 hrs
Altitude: 2000m (6562ft)
Vibration: 10-500Hz 2G 10min Sweep, 20G Surge 11ms
Case Size: 135 x 121 x 40mm (5.3 x 4.8 x 1.6”)
Weight: 0.59 Kg (1.3 Lb)
