PS36V-2.5 Technical Specifications

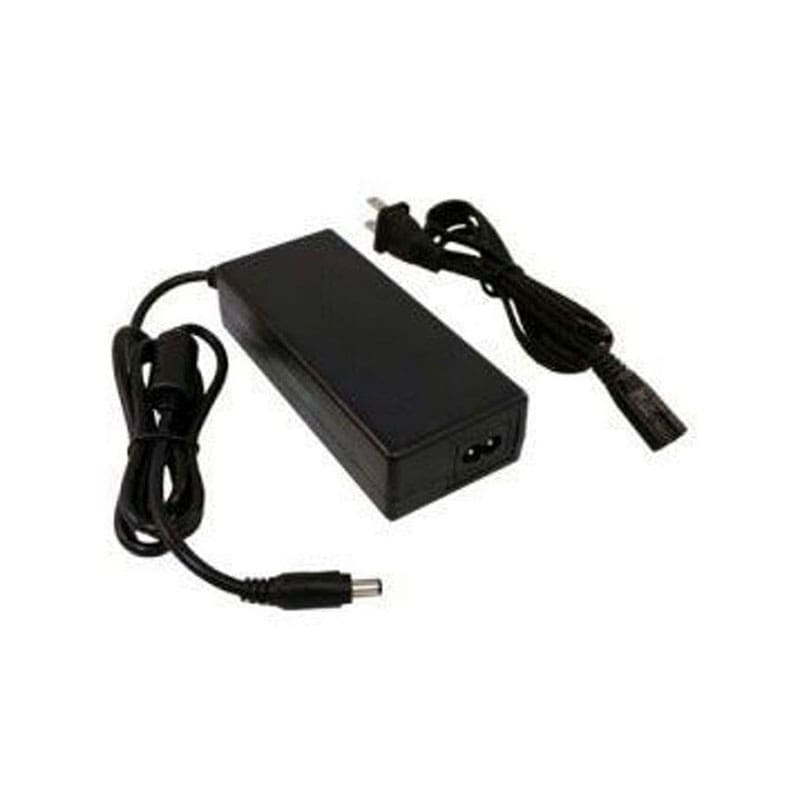

Tycon System AC/DC Desktop Adapter 36V 90W Power Supply
Brand: Tycon Systems
Maufacture Part Number: PS36V-2.5
Input Operating Range: 90-264VAC 47/63Hz
Maximum Power: 90W
Input In-rush Current: 50A Max
Input Current: 1.5A Max
Static Power Consumption: 0.5W Max
Line / Load Regulation: 1% / 5%
Output Voltage: 36 VDC +/- 0.5V
Continuous Load Current: 2.5 A
Ripple and Noise: 120mVp-p Max
Efficiency: 80% Minimum
Dielectric Strength: 3000V rms / 50Hz, 3 sec, 5mA Max
Insulation Resistance: 50M min at 500VDC
Protection: Short Circuit, Over-Current
Operating Temp: -20°C to 60°C (-4°F to 140°F)
Operating Humidity: 90% non-condensing
Storage Temp: -40°C to 80°C (-40°F to 176°F)
Case Size: 140 x 60 x 34mm (5.5 x 2.4 x 1.3”)
Weight: 435 g (15 oz )
Certifications: UL, CE, FCC, RoHS
MTBF: 50,000 Hours Min
