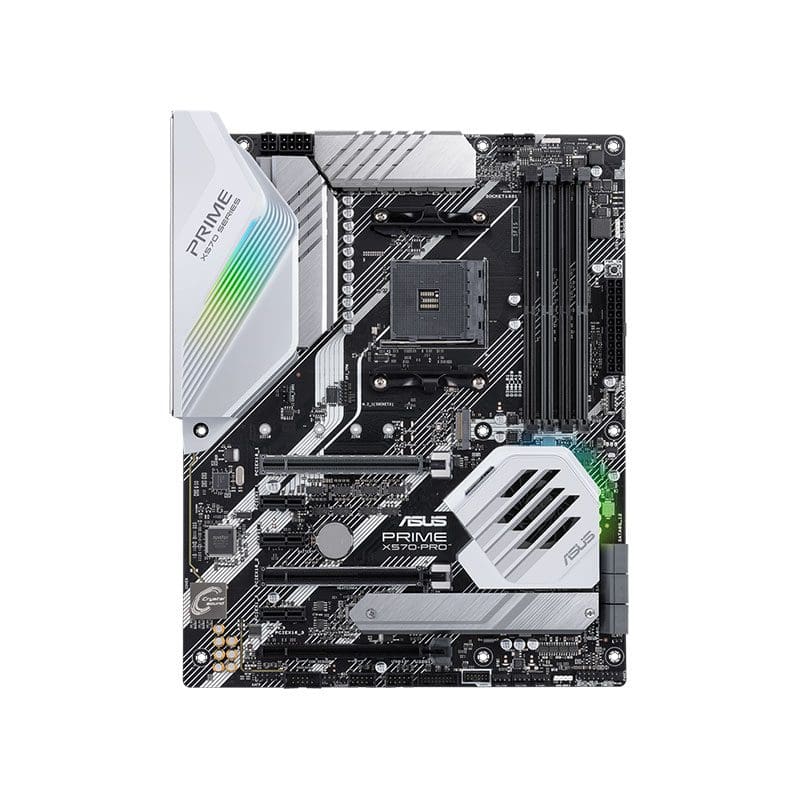

PRIME X570-PRO 3 AM4 Technical Specifications
Processors Dual M.2 USB 3.2GEN2
General Information
Product Name AMD Ryzen 3 AM4 Processors Dual M.2 USB 3.2GEN2 &Aura Sync RGB
Manufacturer Part Number PRIME X570-PRO
Product Line Prime
Product Model X570-PRO
Product Type Desktop Motherboard
Audio
Audio Channels 7.1
Interfaces/Ports
Total Number of USB Ports 8
S / PDIF Yes
HDMI Yes
DisplayPort Yes
I/O Expansions
Number of Total Expansion Slots 6
Total Number of PCI Express Slots 6
Number of PCI Express x1 Slots 3
Number of PCI Express x16 Slots 3
Memory
Number of Memory Slots 4
Memory Form Factor DIMM
UDIMM
Maximum Memory 128 GB
Memory Speed Supported 4400 MHz (O.C.)
4266 MHz (O.C.)
4133 MHz (O.C.)
4000 MHz (O.C.)
3866 MHz (O.C.)
3733 MHz (O.C.)
3600 MHz (O.C.)
3466 MHz (O.C.)
3400 MHz (O.C.)
3200 MHz
3000 MHz
2933 MHz
2800 MHz
2666 MHz
2400 MHz
2133 MHz
3200 MHz (O.C.)
3000 MHz (O.C.)
Memory Technology DDR4 SDRAM
Network & Communication
Gigabit Ethernet Yes
Processor & Chipset
Chipset Manufacturer AMD
Total Processor Supported 1
Processor Socket Socket AM4
Processor Supported Ryzen 7
Ryzen 7 PRO
Ryzen 5
Ryzen 5 PRO
Ryzen 3
Ryzen 9
Video
Onboard Video CPU Dependent Video
