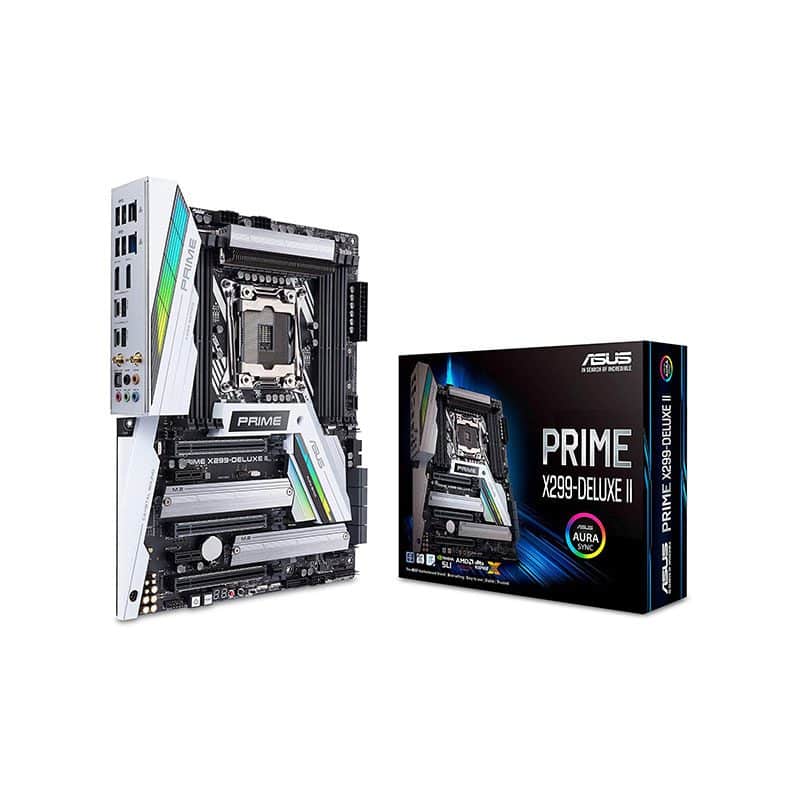

PRIME X299-DELUXE II Technical Specifications
ASUS LGA 2066 Intel X299 SATA 6Gb/s USB 3.1 ATX Intel Motherboard
Model
Brand
ASUS
Model
Prime X299-Deluxe II
Supported CPU
CPU Socket Type
LGA 2066
CPU Type
Intel Core X-Series Processors Family (6-core above) on LGA 2066 Socket*
Supported CPU Technologies
Supports Intel Turbo Boost Max Technology 3.0*
* The support of these features depends on the CPU types.
Chipsets
Chipset
Intel X299
Memory
Number of Memory Slots
8×288pin
Memory Standard
DDR4
4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3600(O.C.)*/ 3400(O.C.)*/ 3333(O.C.)*/ 3300(O.C.)*/ 3200(O.C.)*/ 3000(O.C.)*/ 2800(O.C.)*/ 2666
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
Maximum Memory Supported
128GB
Channel Supported
Quad Channel
Expansion Slots
PCI Express 3.0 x16
44-Lane CPU (18-core, 12-core & 10-core CPU):
3 x PCI Express 3.0/2.0 x16 slots (single@x16, dual@x16/x16, triple@x16/x16/x8 mode)
28-Lane CPU (6-core & 8-core CPU):
2 x PCI Express 3.0/2.0 x16 slots (single@x16, dual@x16/x8 mode)
1 x PCI Express 3.0/2.0 x16 slots (PCIEX16_3 max. at x2 mode)*
* PCIEX16_3 shares bandwidth with SATA6G_5 & STATA6G_6 when using 28-lane CPU.
PCI Express x1
2 x PCI Express 3.0/2.0 x1 slots (compatible with PCIe x1 devices)*
* PCIEX1_1 shares bandwidth with USB 3.1 Gen 2 front panel connector (U31G2_E1). It is disabled by default.
* PCIEX1_2 shares bandwidth with SATA6G_7.
Storage Devices
SATA 6Gb/s
8 x SATA 6.0Gb/s ports*
* The SATA6G_7 shares bandwidth with PCIEX1_2.
* SATA6G_5 & SATA6G_6 shares bandwidth with PCIEX16_3 when using 28-lane CPU.
M.2
Intel Core X-Series Processors support with Intel Rapid Storage Enterprise Technology:
1 x M.2_3 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x4 mode)
Intel X299 Chipset with RAID 0, 1, 5, 10 and Intel Rapid Storage Technology support:
1 x M.2_1 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (both SATA & PCIE 3.0 x4 mode)
1 x M.2_2 Socket 3 with vertical M Key, type 2242/2260/2280/22110 (Support PCIe storage device only)
Intel Optane Ready
Yes
Onboard Audio
Audio Chipset
Realtek S1220A
Audio Channels
8 Channels
* Due to limitations in HDA bandwidth, 32-Bit / 192 kHz is not supported for 8-Channel audio. 32-Bit / 192 kHz is only available under Windows 10.
Onboard LAN
LAN Chipset
Aquantia AQC-111C
Second LAN Chipset
Intel I219V
Max LAN Speed
5Gbps + 10/100/1000Mbps
Wireless LAN
Intel Wireless-AC 9260
2×2 MU-MIMO 802.11 a/b/g/n/ac support dual frequency band 2.4/5 GHz
Supports channel bandwidth: HT20/HT40/HT80/HT160
Bluetooth
Bluetooth V5.0
Rear Panel Ports
RJ45
1 x Aquantia 5G LAN port (blue)
1 x Intel LAN (RJ45) port (black)
DisplayPort
2 x DisplayPort IN ports for Thunderbolt 3
Thunderbolt Ports
2 x Intel Thunderbolt ports (USB Type-C)
USB 3.1
4 x USB 3.0 Gen 1 ports
USB 1.1/2.0
2 x USB 2.0
S/PDIF Out
1 x Optical
