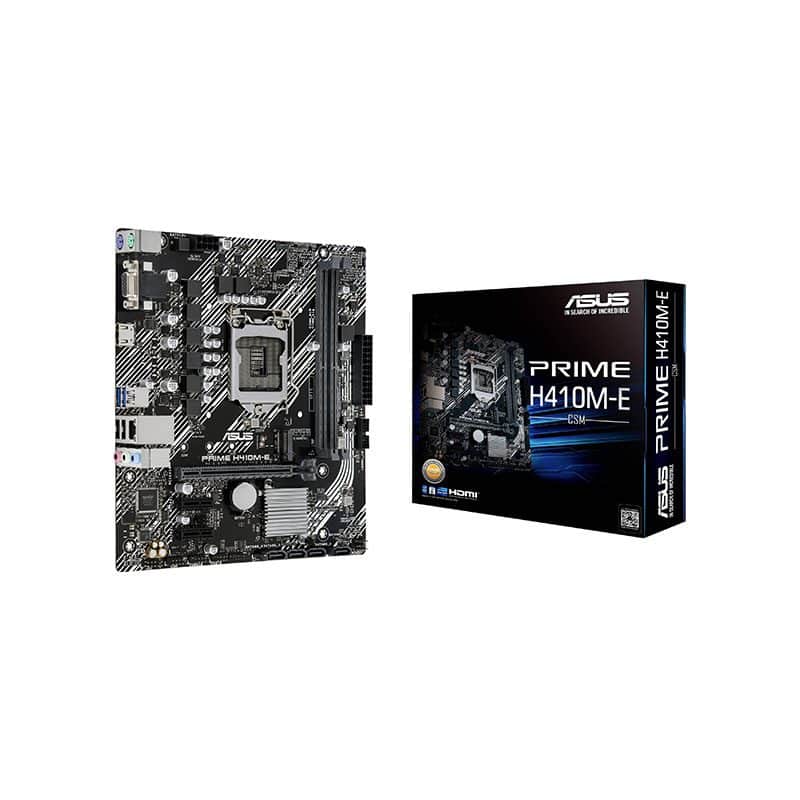

PRIME H410M-E Technical Specifications
ASUS LGA 1200 Micro-ATX Motherboard
CPU
Chipset Intel H410
CPU Socket LGA 1200
Back Panel I/O
USB 2 x USB 3.1 / USB 3.2 Gen 1 Type-A
2 x USB 2.0 Type-A
Display 1 x HDMI 1.4b
1 x VGA
Audio 3 x 3.5 mm
Ethernet / Controller 1 x Realtek RTL8111H Gigabit
PS/2 2 x PS/2
Memory
Memory Slots 2 x 288-Pin
Memory Support DDR4 2133, 2400, 2666, 2800, 2933 MHz
Maximum Capacity 64 GB
Channel Architecture Dual Channel
Storage Expansion
SATA 4 x SATA III
M.2 1 x M Key 2242, 2260, 2280 (PCIe 3.0 x2, SATA III)
Internal I/O
Expansion Slots 1 x PCIe 3.0 x16 (x16 mode)
2 x PCIe 3.0 x1
USB 1 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 2 USB Type-A Port)
2 x USB 2.0 Header (Supports 4 USB Type-A Port)
Air Cooling 1 x 4-Pin CPU
1 x 4-Pin System
Power Connectors 1 x 24-Pin Mainboard
1 x 8-Pin CPU
Audio 1 x S/PDIF
1 x Speaker
Diagnostics Clear CMOS
Legacy 1 x Serial
