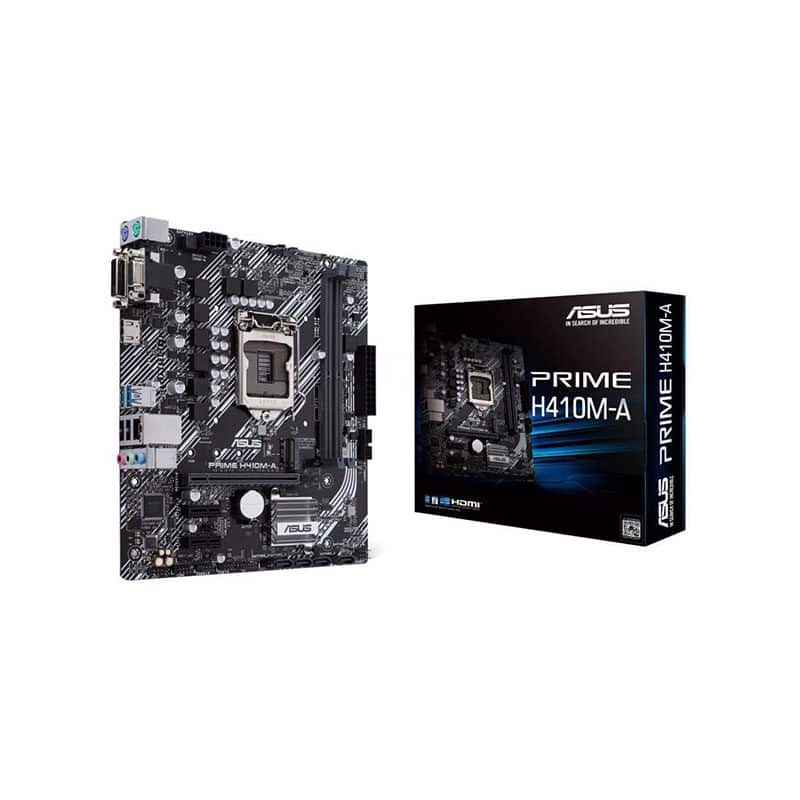

PRIME H410M-A/CSM Technical Specifications
ASUS LGA 1200 Intel H410 SATA 6Gb/s Micro ATX Intel Motherboard
Model
Brand
ASUS
Model
PRIME H410M-A/CSM
Supported CPU
CPU Socket Type
LGA 1200
CPU Type
Intel Socket LGA1200 for 10th Gen Intel Core, Pentium Gold and Celeron Processors*
Supported CPU Technologies
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**
** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipsets
Chipset
Intel H410
Onboard Video
Onboard Video Chipset
Supported only by CPU with integrated graphic
Memory
Number of Memory Slots
2×288pin
Memory Standard
DDR4 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory*
* For 10th Gen Intel processors, only Core i9/i7 CPUs support 2933/ 2800/ 2666/ 2400/ 2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz.
Maximum Memory Supported
64GB
Channel Supported
Dual Channel
Expansion Slots
PCI Express 3.0 x16
1 x PCIe 3.0 x16 slot (support x16 mode)
PCI Express x1
2 x PCIe 3.0 x1 slots
Storage Devices
SATA 6Gb/s
4 x SATA 6Gb/s
M.2
M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x2 & SATA modes)
* When a device in SATA mode is installed on the M.2 socket, SATA6G_2 port cannot be used.
Onboard Audio
Audio Chipset
Realtek ALC887
Audio Channels
7.1 Channels
* A chassis with an HD audio module in the front panel is required to support 7.1-channel audio output.
Onboard LAN
LAN Chipset
Realtek RTL8111H
Max LAN Speed
10/100/1000Mbps
Rear Panel Ports
Back I/O Ports
2 x USB 3.2 Gen 1 ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x D-Sub port
1 x DVI-D port
1 x HDMI port
1 x Realtek RTL8111H 1Gb Ethernet port
3 x Audio jacks
1 x PS/2 keyboard (purple) port
1 x PS/2 mouse (green) port
