PH-GTX1660S-O6G Technical Specifications

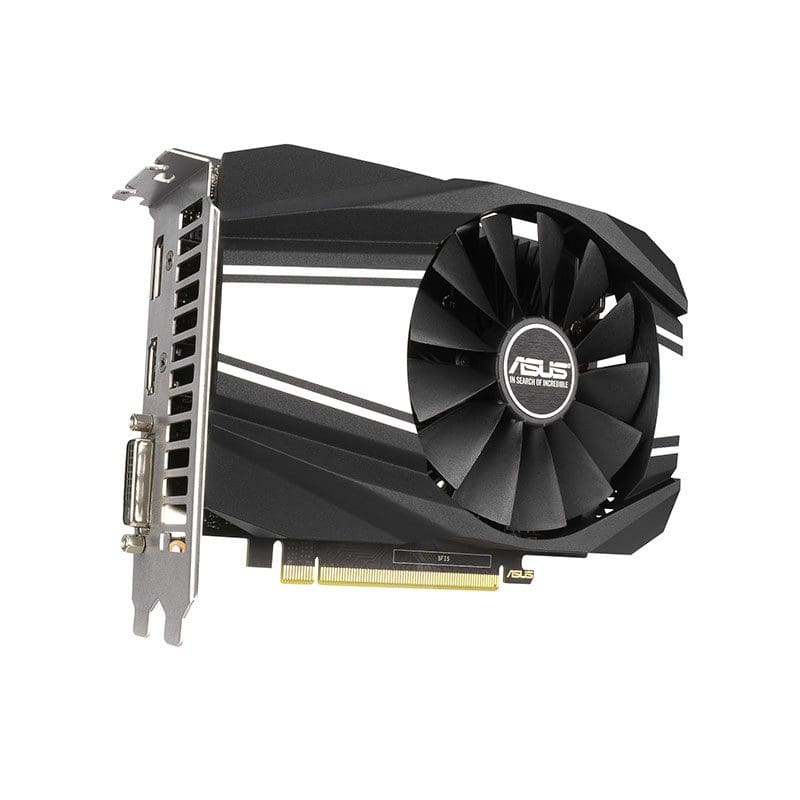

ASUS GeForce GTX 1660 SUPER Overclocked 6GB Phoenix Fan Edition HDMI DP DVI Graphics Card
Model
Brand
ASUS
Series
Phoenix
Model
PH-GTX1660S-O6G
Interface
Interface
PCI Express 3.0
Chipset
Chipset Manufacturer
NVIDIA
GPU
GeForce GTX 1660 SUPER
Core Clock
1530 MHz
Boost Clock
OC Mode: 1830 MHz
Gaming Mode (Default): 1800 MHz
CUDA Cores
1408
Memory
Effective Memory Clock
14002 MHz
Memory Size
6GB
Memory Interface
192-Bit
Memory Type
GDDR6
3D API
OpenGL
OpenGL 4.6
Ports
HDMI
1 x HDMI 2.0b
Multi-Monitor Support
3
DisplayPort
1 x DisplayPort 1.4
DVI
1 x DVI-D
Details
Max Resolution
7680 x 4320
Virtual Reality Ready
Yes
Cooler
Single Fan
Thermal Design Power
125W
System Requirements
Recommended PSU: 450W
Power Connector
8-Pin
HDCP Ready
2.2
Features
Features
Powered by NVIDIA Turing with 1408 CUDA Cores and overclocked 6GB GDDR6 memory in a short form factor
Supports up-to 3 Monitors with HDMI 2.0b, DisplayPort 1.4, and DVI-D ports
Phoenix double-ball bearing fan provides superior airflow and cooling with 2x longer lifespan
GPU Tweak II makes monitoring performance and streaming in real time easier than ever, and includes additional software like Game Booster, XSplit Gamecaster, WTFast and QuantumCloud
Auto-Extreme technology delivers premium quality and reliability with aerospace-grade Super Alloy Power II components to run 15% faster and last 2.5 longer than reference video cards
