PFBS240 Technical Specifications

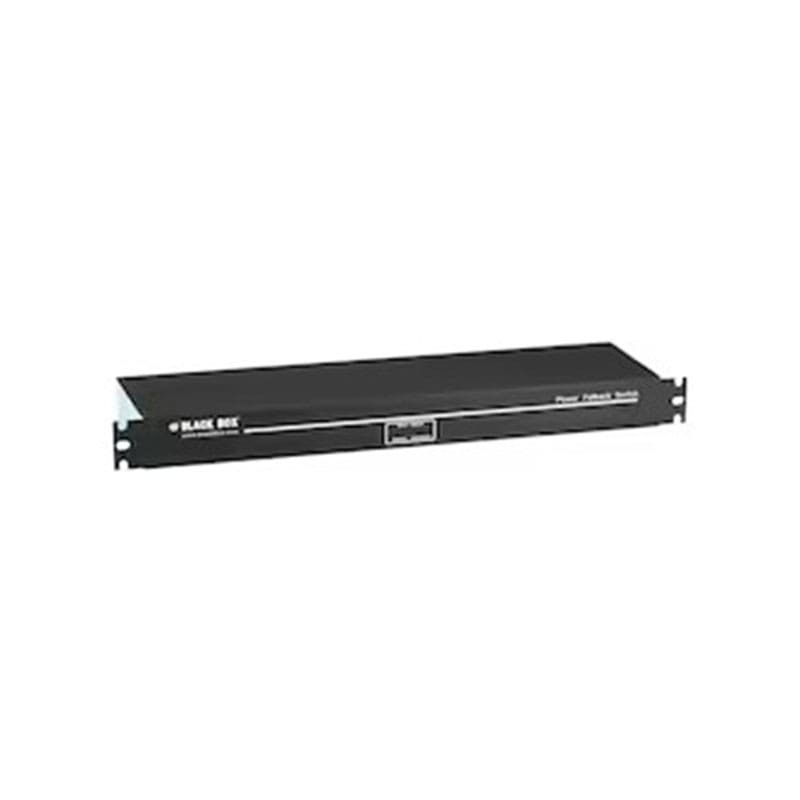

Black Box Fallback Switch 240 VAC
Manufacturer: Black Box
Manufacture Part Number: PFBS240
AC Voltage — Input: 208 to 240 volts
Input Feeds — 20 Amps
Connectivity
Connector: Power IEC 60320 C20
General
Form Factor: Rack-mountable
Max. Load per Outlet — 10/16 Amps
Max. Load per Unit — 16 Amps
Connectors — Dual IEC C20
Output Receptacles — (8) IEC C13, (1) IEC C19
Size — (1U) 4.4H x 43.4W x 12.7D cm
Temperature — Operating; 0 to 50°C
Humidity — 10 to 90% RH
Note: US 120VAC version PSBS120A is also available
AC Voltage — Input: 100–120 volts
Connectors — IEC C14
Output Receptacles — (8) NEMA 5-15R
RoHS — Yes
Size — 1.75″H (1U) x 17.1″W x 5″D (4.4 x 43.4 x 12.7 cm)
