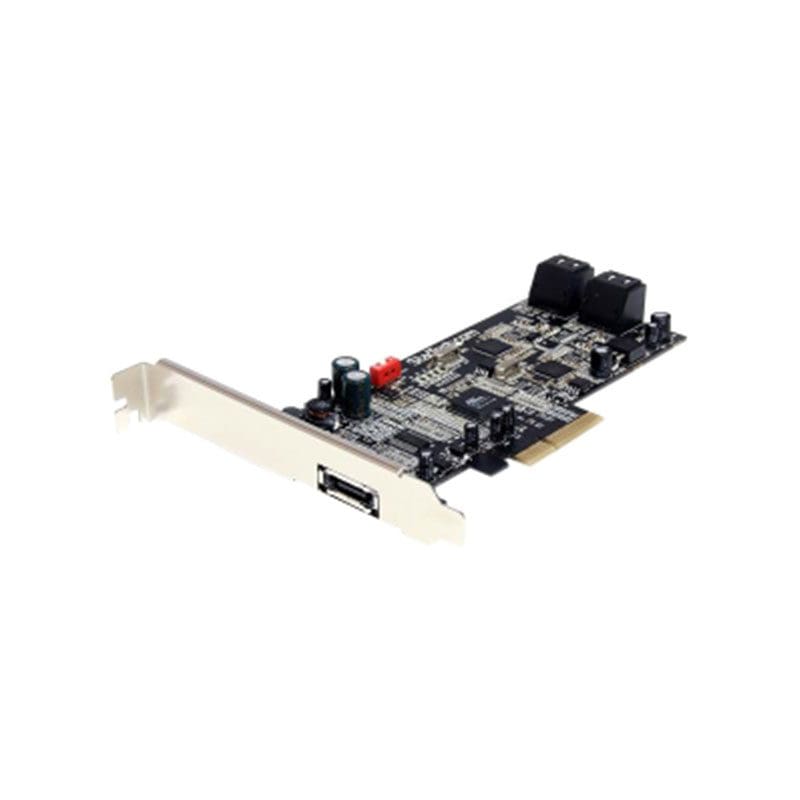

PEXSAT34RH technical specifications
StarTech Add 4 Internal SATA Iii 6GBps Ports To A Computer Through A PC
Manufacturer Part Number PEXSAT34RH
Brand Name StarTech.com
Product Type SATA Controller
Technical Information
Host Interface PCI Express 2.0 x2
Controller Type Serial ATA/600
RAID Supported Yes
RAID Levels JBOD
1
0
1+0
Interfaces/Ports
Total Number of SATA Ports 4
Number of SATA Ports (Internal) 4
Physical Characteristics
Height 2.8″
Width 4.7″
Thickness 0.8″
Form Factor Plug-in Card
Weight (Approximate) 1.76 oz
Miscellaneous
Platform Supported PC
Mac
Linux
Environmentally Friendly Yes
Environmental Certification RoHS
