P11607-001 Technical Specifications

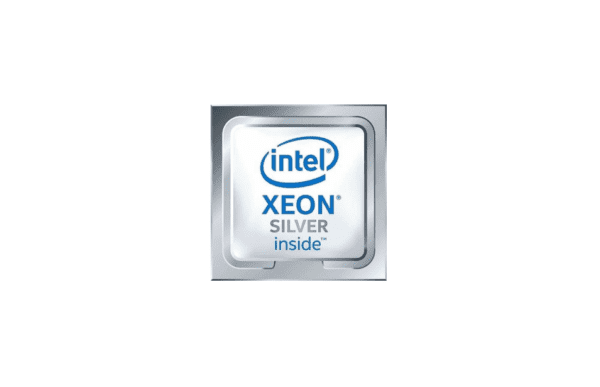

HPE 2.20GHz 16.5MB Cache Socket 3647 Intel Xeon Silver 4214 12-Core Processor Upgrade
Brand Intel
Part No. P11607-001
Processor Type Server
Processor Family 2nd Generation Intel Xeon Scalable Processors
Series Xeon Silver Processor
Core Model Type/ProcNo. 4214
Processor Code Name Cascade Lake
Core Stepping L1
Manufacturing Technology 14 nm
# of Cores 12
# of Threads 24
Clock Speed 2.20 GHz
Max Turbo Frequency 3.20 GHz
L3 Cache Size 16.5 MB
# of UPI Links 2
Thermal Power 85 Watts
Max Memory Size 1 TB
Memory Types DDR4-2400
Maximum Memory Speed 2400 MHz
Memory Channels 6
ECC Memory Supported Yes
Intel Optane DC Persistent Memory Supported Yes
CPU Socket Type LGA 3647
Package Size 76.0mm x 56.5mm
TCASE 77 °C
Embedded Options Available Yes
Scalability 2S
PCI Express 3.0
Max # of PCI Express Lanes 48
Advanced Technologies Enhanced Intel SpeedStep Technology
Intel 64
Intel Deep Learning Boost (Intel DL Boost)
Intel Resource Director Technology (Intel RDT)
Intel Speed Shift Technology
Intel Transactional Synchronization Extensions
Intel Turbo Boost Technology 2.0
Intel Virtualization Technology (VT-x)
Intel Virtualization Technology for Directed I/O (VT-d)
Intel Volume Management Device (VMD)
Intel vPro Platform Eligibility
Intel VT-x with Extended Page Tables (EPT)
# of AVX-512 FMA Units 1
Instruction Set Extensions Intel SSE4.2, Intel AVX, Intel AVX2, Intel AVX-512
Security & Reliability Execute Disable Bit
Intel AES New Instructions
Intel Run Sure Technology
Intel Trusted Execution Technology
Mode-based Execute Control (MBE)
Product Condition OEM
