P11518-001 Technical Specifications

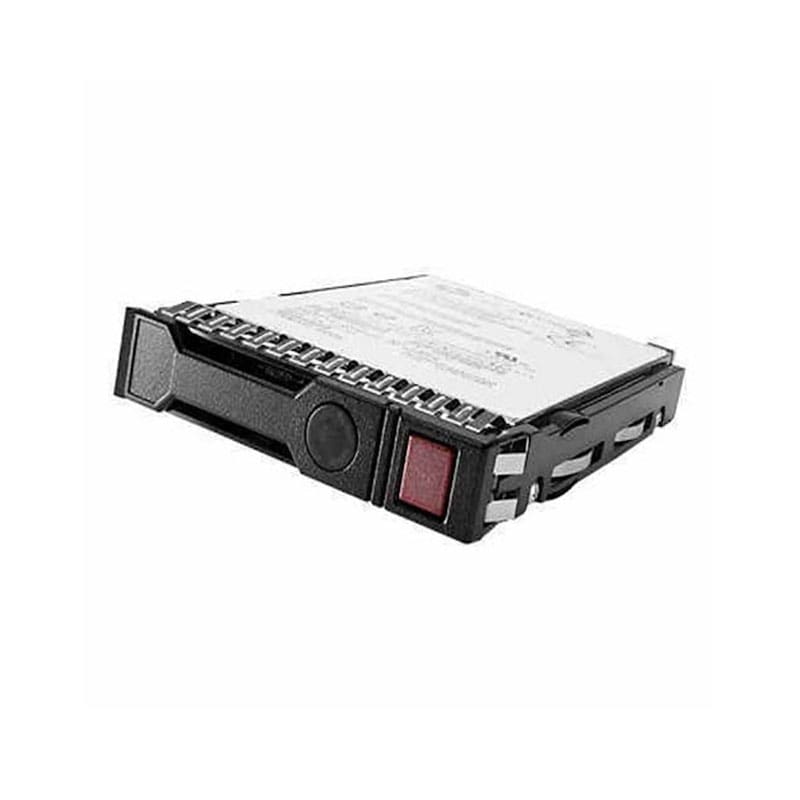

HP 14TB 7200RPM SAS 12Gbps 3.5-inch Internal Hard Drive
Manufacturer : Hewlett Packard Enterprise (HPE)
MPN : P11518-001
Model Number: MB014000JWTFD
Assembly Number: P04385-002
SKU : P11518-001
Type: Hard Drive – Hot-Swap
Interface: SAS 12Gbps
Form Factor: 3.5 inch LFF
Capacity: 14 TB
Technical Information
Carrier Type: Low Profile Carrier (LPC)
Bytes per Sector: 512
Drive Technology (Fill): Helium (He)
Format Type: 512e
Connectivity: Dual Port
Plug Type: Hot Pluggable
Workload Type: Midline
Features: Advanced Format 512e, Digitally Signed Firmware
Bundled with: HPE Low Profile Carrier (LPC)
Platform Supported: HPE ProLiant Rack/Tower/Blade System Servers/Synergy
Performance
Drive Transfer Rate Synchronous (Max): 12Gb/sec
Drive Rotational Speed: 7200 RPM
OD Media Rate, Max Sequential Throughput (MiB/s): 250
128Kib Random Rd (IOPs): 105
128Kib Random 70% RD/ 30% WT (IOPs): 115
128Kib Random 50% RD/ 50% WT (IOPs): 120
Expansion & Connectivity
Interfaces: 1 x SAS 12 Gb/s
Compatible Bay: 3.5inch LFF
Power Requirement
Idle Time: 5.30 Watts
Random R/W: 8.50 Watts
Sequential Read: 7.40 Watts
Sequential Write: 6.90 Watts
Environmental Parameters
Max. Operating Temperature: 50° F (10°C)
Min. Operating Temperature: 95° F (35°C)
Dimension and Weight
Width : 4 Inch
Depth : 5.8 Inch
Height : 1 Inch
Weight : 1.52 Lbs
