P02965-B21 Technical Specifications

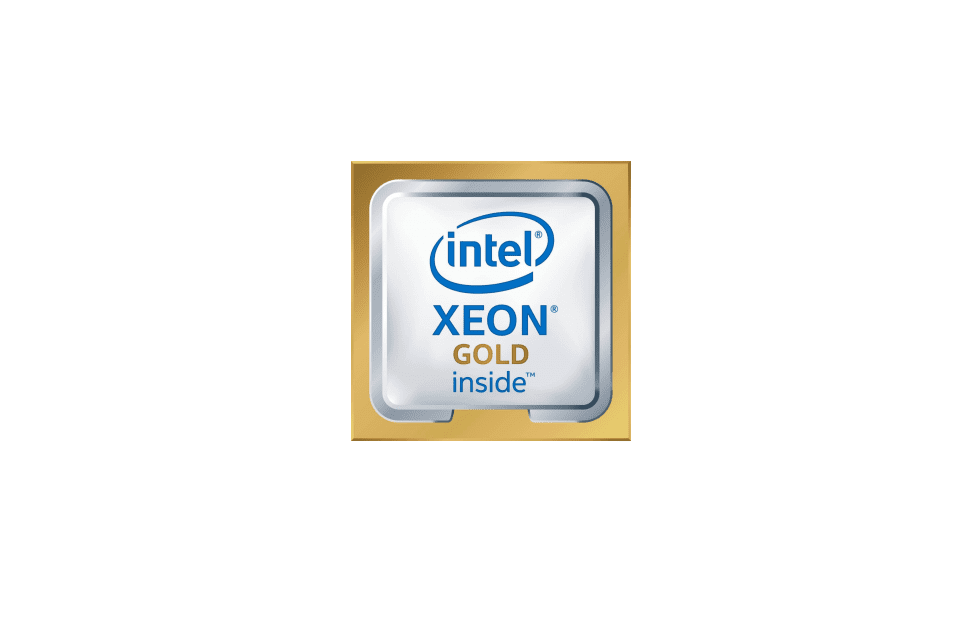

HPE 2.10GHz 28MB L3 Cache Socket FCLGA3647 Intel Xeon Gold 6230 20-Core Processor Upgrade for ProLiant DL560 Gen10
Brand Intel
Part No. P02965-B21
Processor Type Server
Processor Family 2nd Generation Intel Xeon Scalable Processors
Series Xeon Gold Processor
Core Model Type/ProcNo. 6230
Processor Code Name Cascade Lake
Core Stepping B1
Manufacturing Technology 14 nm
# of Cores 20
# of Threads 40
Clock Speed 2.10 GHz
Max Turbo Frequency 3.90 GHz
L3 Cache Size 27.5 MB
# of UPI Links 3
Thermal Power 125 Watts
Max Memory Size 1 TB
Memory Types DDR4-2933
Maximum Memory Speed 2933 MHz
Memory Channels 6
ECC Memory Supported Yes
Intel Optane DC Persistent Memory Supported Yes
CPU Socket Type LGA 3647
Package Size 76.0mm x 56.5mm
TCASE 87 °C
Embedded Options Available Yes
Scalability 4S
PCI Express 3.0
Max # of PCI Express Lanes 48
Advanced Technologies Enhanced Intel SpeedStep Technology
Intel 64
Intel Deep Learning Boost (Intel DL Boost)
Intel Hyper-Threading Technology
Intel Resource Director Technology (Intel RDT)
Intel Speed Shift Technology
Intel Turbo Boost Technology 2.0
Intel Virtualization Technology (VT-x)
Intel Virtualization Technology for Directed I/O (VT-d)
Intel Volume Management Device (VMD)
Intel vPro Platform Eligibility
# of AVX-512 FMA Units 2
Instruction Set Extensions Intel SSE4.2, Intel AVX, Intel AVX2, Intel AVX-512
Security & Reliability Execute Disable Bit
Intel AES New Instructions
Intel Run Sure Technology
Intel Trusted Execution Technology
Mode-based Execute Control (MBE)
Product Condition OEM
