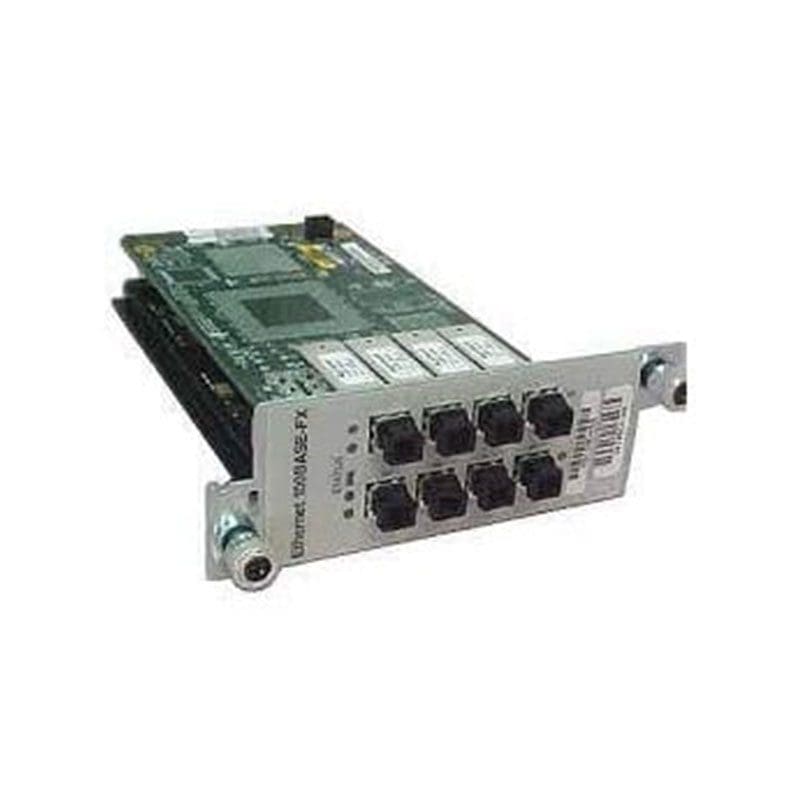

P-8FE-FX Technical Specifications
Juniper 8- Port Fast Ethernet PIC Module
Manufacturer Juniper Networks, Inc
Brand Name Juniper
Product Name 8- Port Fast Ethernet PIC Module
Product Type Interface Module
Technical Information
Application/Usage Data Networking
Interfaces/Ports
Interfaces/Ports Details 8 x MT-RJ 100Base-FX
Media & Performance
Media Type Supported Optical Fiber
Fiber Optic Cable Standard 62.5/125 µm
Fiber Mode Supported Multi-mode
Maximum Data Transfer Rate 100
Miscellaneous
Additional Information
Length: 1.24-mile / 2-km reach on 62.5/125 micrometer MMF
Wavelength: 1270 to 1380 nm
Average launch power: -20 to – 14 dBm
Receiver saturation: -14 dBm
Receiver sensitivity: -34 dBm
Compatibility
Supported Platform: M20
