OWCS3DAPT4MP20P Technical Specification

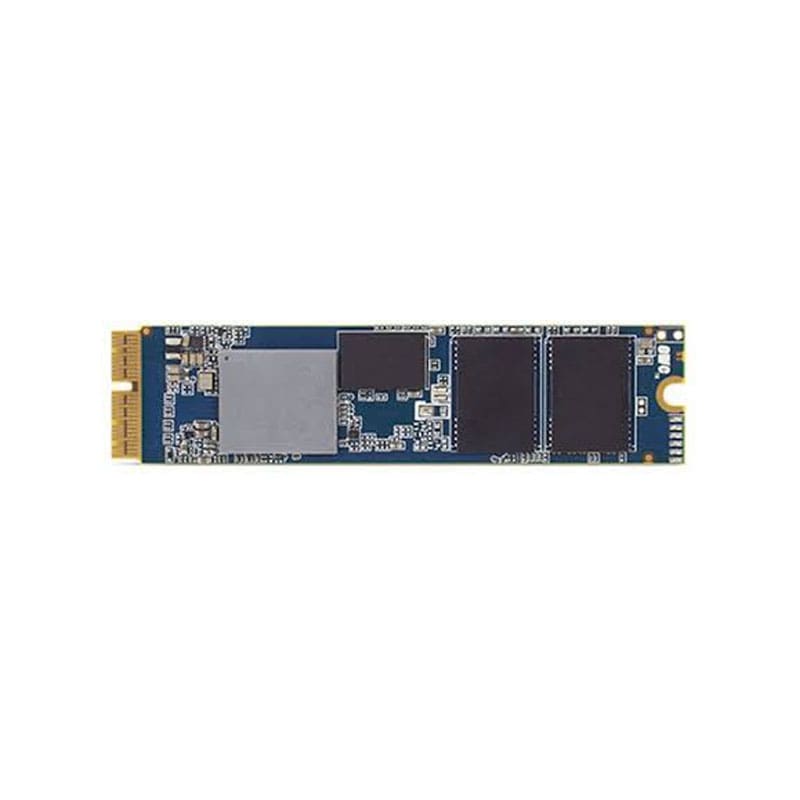

OWC 2TB Aura Pro X2 NVMe SSD Upgrade for Mac Pro
Manufacturer: OWC
Controller : Silicon Motion SM2262EN Series Processor with 7% over-provisioning
NAND : 3D TLC Synchronous NAND Flash
Form Factor : Custom Blade
Interface : PCIe 3.1 x4, NVMe 1.3
Capacity : 1920GB useable capacity
Total Flash Memory Components: 2048GB, 128 GB Allocated to real-time data redundancy and error correction
Formatted Capacity : 1788GiB
SMART Attributes : Standard
Native Command Queuing : up to 32 commands
RoHS Compliant : Yes
Format : Unformatted
Physical :
Height (max) 2.6mm (0.1 in)
Width (max) 2.2 cm (0.9 in)
Length (max) 8.9 cm (3.5 in)
Weight 8.0 g (0.28 oz )
MTBF (Mean Time Between Failures) : 1,500,000
Data Reliability : ECC Recovery
Endurance : 900TB total bytes written (TBW)
TRIM Support : OS Dependent
Performance (Compressible Data) :
Average access time <0.1 ms
Sequential Reads (max) up to 1534MB/s
Sequential Writes (max) up to 1353MB/s
