NM-1FE1R2W Technical Specifications

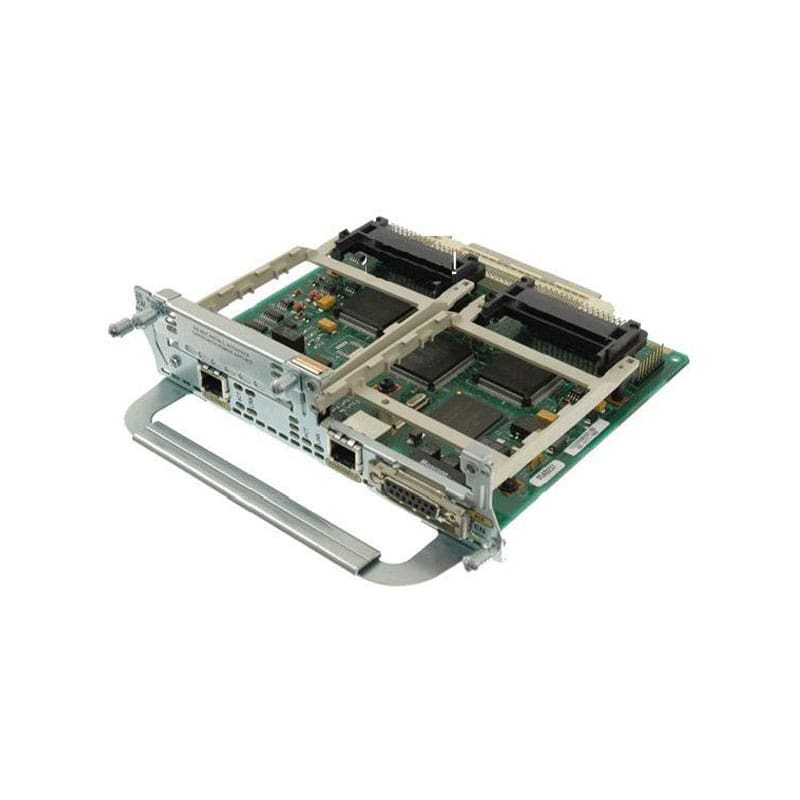

Cisco 1 Port 10/100 Ethernet NM Card Network Module
Manufacturer: Cisco Systems, Inc
Brand: Cisco
Brand Name: Cisco
Product Name: 1-Port 10by100 Ethernet 1-Port Token Ring 2 WIC Slots Network Module
Product Type: Network Module
Technical Information
Application/Usage: Data Networking
Interfaces/Ports
Interfaces/Ports Details: 1 x RJ-45 10/100Base-TX LAN
Interfaces/Ports Details: 1 x RJ-45 Token Ring LAN
Interfaces/Ports Details: 1 x DB-9 Token Ring LAN
Media & Performance
Media Type Supported: Twisted Pair
Ethernet Technology: Fast Ethernet
Network Technology: Token Ring
Network Technology: 10/100Base-TX
Maximum Data Transfer Rate: 100 Mbit/s
I/O Expansions
Number of Total Expansion Slots: 2
Expansion Slot Type: WIC
Expansion Slot Type: VWIC
