NIM-1T Technical Specification

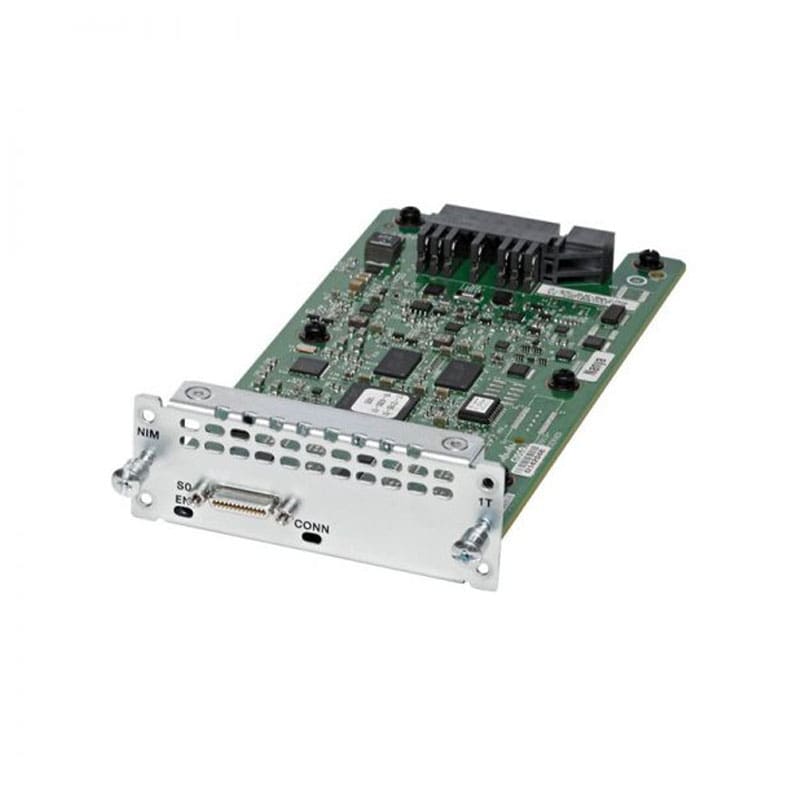

Cisco WAN Network Interface Module Serial adapter
Brand: Cisco
Product Line: Cisco
Model: WAN Network Interface Module
Manufacturer: CISCO DS HARDWARE DIRECT
Network & Communication
Connectivity Technology: Wired
Data Link Protocols: RS-232, RS-449, RS-530, RS-530A, V.35, X.21
Data Transfer Rate: 8 MBps
Form Factor: Plug-in module
Product Type: Serial adapter
Connectivity
Interface Provided: 1 x RS-232/449/530/V.35/X.21
Port Quantity: 1
Network & Adapter Ports: RS-232/449/530/V.35/X.21
Technical Information
Max Operating Temperature: 104 degree Fahrenheit
Min Operating Temperature: 32 degree Fahrenheit
Operating Humidity: 10 – 90% (non-condensing)
Product Information
Packaged Quantity: 1
Service Activation: No
Dimensions & Weight
Height: 1.3 inch
Width: 3.5 inch
Depth: 7.2 inch
