NGI-U05C2POE4 Technical Specifications

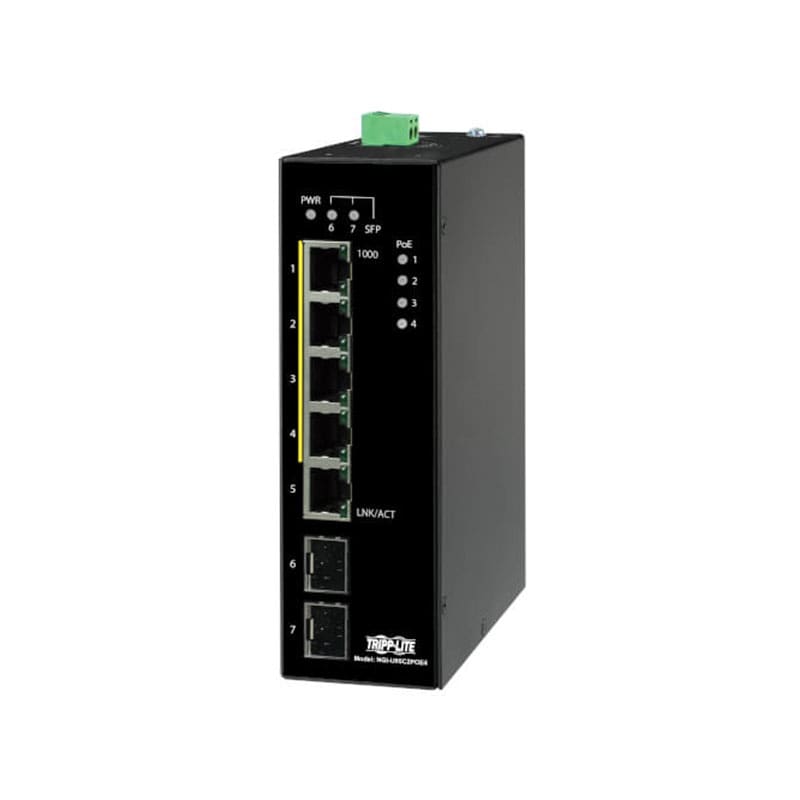

Tripp Lite Unmanaged Industrial Gigabit Ethernet Switch 5-Port 10/100/1000 Mbps, PoE+ 30W, 2 GbE SFP Slots, DIN Mount
Brand: Tripp Lite
Product Line: Tripp Lite
Manufacturer: Tripp Lite
Network & Communication
Form Factor (Hubs & Switches): DIN rail mountable
Jumbo Frame Support: 10000 bytes
MAC Address Table Size: 8K entries
Manageable: No
PoE Budget: 120 watt
Ports: 5
Power Over Ethernet (PoE): PoE+
Product Type: Switch
Status Indicators: Data, LAN, PoE, Power, Receive, Transmit
Subcategory: Network hubs and switches
Expansion Slots
QSFP Slots: 1000Base-X SFP (uplink)
Connectivity
Port Quantity: 4
Port Type: 10/100/1000 (PoE+)
Ports Type (2nd): 10/100/1000
Power
Required Voltage: DC 24 – 57 volt
Technical Information
Max Operating Temperature: 140 degree Fahrenheit
Max Storage Temperature: 185 degree Fahrenheit
Min Operating Temperature: 14 degree Fahrenheit
Min Storage Temperature: -40 degree Fahrenheit
Operating Humidity: 5 – 95% (non-condensing)
