NFX350-S1-AC Technical Specifications

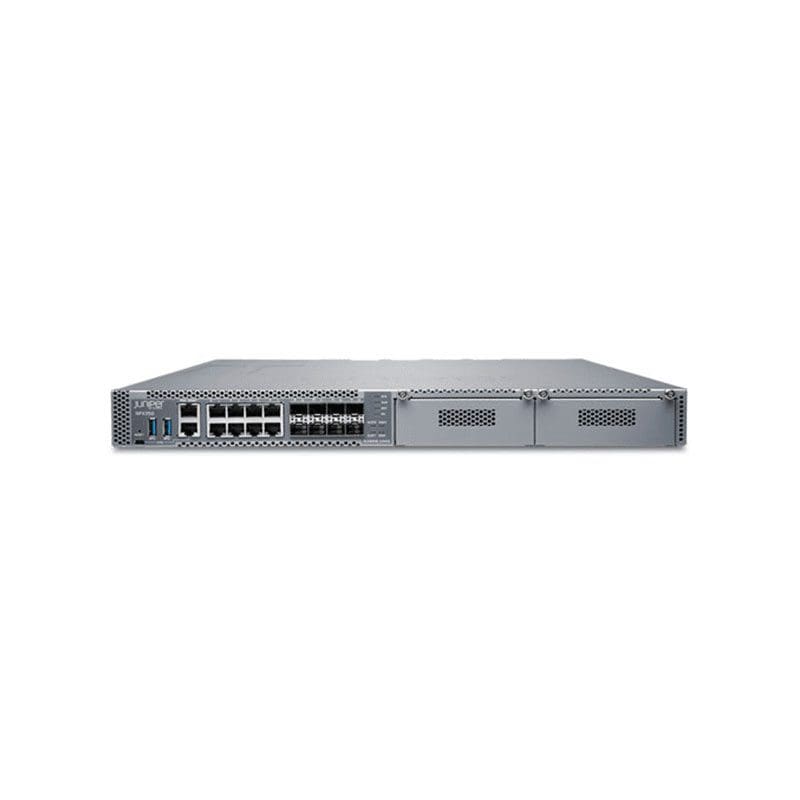

Juniper Networks NFX Series Network Services Platform NFX350 application accelerator
Form Factor Rack-mountable
Airflow Direction Front to back airflow
Connectivity Technology Wired
Network / Transport Protocol TCP/IP, UDP/IP, DNS
Routing Protocol OSPF, RIP-1, RIP-2, IGMPv2, IGMP, DVMRP, VRRP, PIM-SM, static IP routing, PIM-DM, IGMPv3, GRE, OSPFv3, PIM-SSM, MSDP, ECMP, MPLS, Bidirectional Forwarding Detection (BFD), RSVP
Remote Management Protocol SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI
Performance Secure traffic throughput: 12 Gbps ¦ VPN throughput (IPSec): 2.5 Gbps
Capacity Maximum number of VNFs: 8 ¦ MAC addresses: 16000 ¦ Jumbo frame size: 9216 ¦ Virtual interfaces (VLANs): 1024 ¦ VLAN IDs: 4096 ¦ MST instances: 64 ¦ ACL entries: 1500
Features Flow control, layer 3 switching, layer 2 switching, VLAN support, IGMP snooping, IPv6 support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, IPSec Virtual Private Network (VPN), Quality of Service (QoS), Dead Peer Detection (DPD), IPSec NAT-Traversal (NAT-T), MPLS VPN, DHCP server, DHCP proxy, temperature sensor, Per-VLAN Spanning Tree Plus (PVST+), IPv4 support, DHCP relay, DHCP client, Multiple VLAN Registration Protocol (MVRP), Class of Service (CoS), Strict Priority (SP), 802.1x authentication, VoIP support, DiffServ Code Point (DSCP) support, Smoothed Deficit Weighted Round Robin (SDWRR), Virtual Private LAN Service (VPLS), Secure Copy (SCP), Label Distribution Protocol (LDP), Network Timing Protocol (NTP), policy based routing, VLAN Double Tagging (Q-in-Q), Voice VLAN, Connectivity Fault Management (CFM), LLDP-MED, Private VLAN, Perfect Forward Secrecy (PFS), IP Security (IPSec) support, DHCP Helper, MAC based VLAN, VLAN Tagging, port-based VLAN, Point-to-Point Protocol (PPP), High-Level Data Link Control (HDLC), Multilink Point-to-Point Protocol (MLPPP), Multilink Frame Relay (MLFR), source based routing, site-site IPsec VPN, VPN monitoring, Circuit cross-connect (CCC), translational cross-connect (TCC), next-generation multicast VPN (NG-MVPN)
Encryption Algorithm DES, Triple DES, MD5, IKE, SHA-1, 256-bit AES, IKEv2, AES-GCM, 256-bit SHA, 128-bit SHA
Authentication Method RADIUS, TACACS+, Secure Shell v.2 (SSH2)
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.1ab (LLDP), IEEE 802.1ak
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 122 °F
Humidity Range Operating 5 – 90% (non-condensing)
General
Device Type Application accelerator
Height (Rack Units) 1U
Width 17.3 in
Depth 20.9 in
Height 1.7 in
Weight 18.52 lbs
Processor / Memory / Storage
Processors Installed 1 x Intel Xeon
Max Supported Qty 1
RAM 32 GB DDR4 SDRAM
Hard Drive SSD 50 GB
Expansion / Connectivity
Interfaces 8 x 1000Base-T – RJ-45 (WAN / LAN) ¦ 8 x 10GBase-X – SFP+ (WAN / LAN) ¦ 1 x 1000Base-T (management) – RJ-45 ¦ 1 x console – RJ-45 ¦ 1 x mini-USB ¦ 2 x USB 3.0 – Type A
Power
Power Device Internal power supply – hot-plug
Installed Qty 1
Max Supported Qty 2
Voltage Required AC 100/240 V
Power Provided 450 Watt
Software / System Requirements
OS Provided Wind River Linux 8
OS Required JUNOS
