NFX250-S1E Technical Specifications

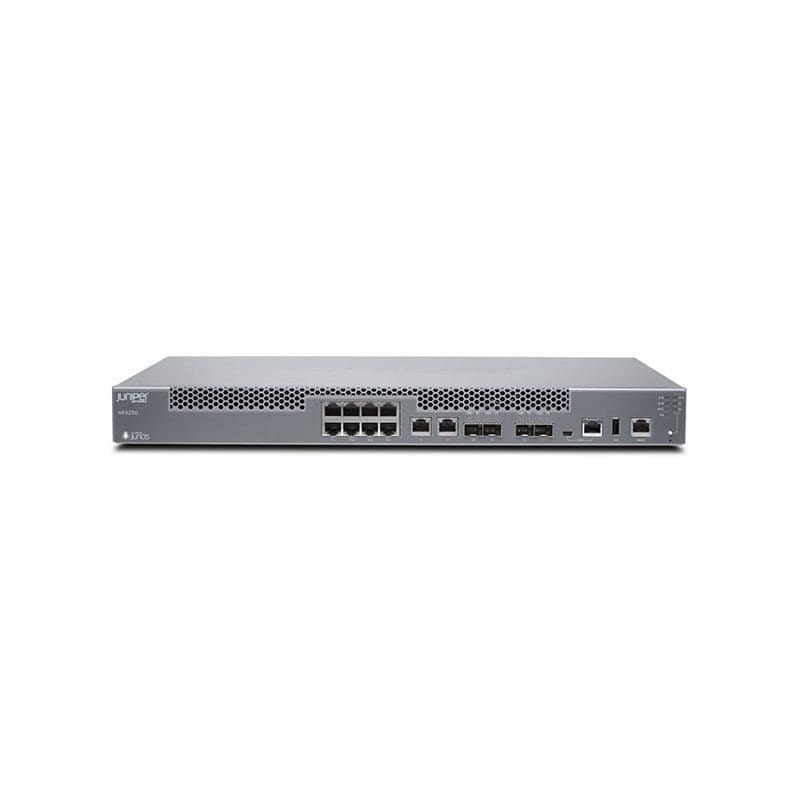

Juniper Networks NFX250 Network Services Platform application accelerator
Form Factor Rack-mountable
Airflow Direction Front to back airflow
Connectivity Technology Wired
Network / Transport Protocol TCP/IP, UDP/IP, DNS
Routing Protocol OSPF, RIP-1, RIP-2, IGMPv2, IGMP, VRRP, OSPFv2, PIM-SM, PIM-DM, IGMPv3, PIM-SSM, static IPv4 routing, Bidirectional Forwarding Detection (BFD), CIDR
Remote Management Protocol SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI
Performance Forwarding performance: 88 Gbps ¦ VNF capacity: 20 Gbps
Capacity Maximum number of VNFs: 6 ¦ MAC addresses: 16000 ¦ Jumbo frame size: 9216 ¦ Virtual interfaces (VLANs): 4096 ¦ Active VLANs: 1024 ¦ MST instances: 64 ¦ ARP entries: 512 ¦ IPv4 routes (Unicast): 512 ¦ ACL entries: 1500 ¦ LAG groups: 32 ¦ Maximum member ports per LAG: 8 ¦ IGMP snooping entries: 1000
Features Layer 3 switching, layer 2 switching, BOOTP support, RARP support, ARP support, VLAN support, IGMP snooping, DoS attack prevention, port mirroring, High Availability, SNTP support, sFlow, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, VLAN Stacking, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), IP Precedence, DHCP server, Virtual Route Forwarding-Lite (VRF-Lite), DHCP proxy, Dynamic ARP Inspection (DAI), temperature sensor, Per-VLAN Spanning Tree Plus (PVST+), IPv4 support, DHCP relay, DHCP client, Management Information Base (MIB), Multicast VLAN Registration (MVR), Multiple VLAN Registration Protocol (MVRP), NTP time synchronization, Class of Service (CoS), Strict Priority (SP), tagged VLAN, DiffServ Code Point (DSCP) support, Smoothed Deficit Weighted Round Robin (SDWRR), system log, IP source guard, Internet Control Message Protocol (ICMP), ICMP Router Discovery Protocol (IRDP), Secure Copy (SCP), Management Information Base (MIB) II, Source-Specific Multicast (SSM)
Encryption Algorithm MD5, TLS, PEAP, TTLS
Authentication Method RADIUS, TACACS+, Secure Shell v.2 (SSH2), Extensible Authentication Protocol (EAP)
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.1ab (LLDP), IEEE 802.1ak
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 122 °F
Humidity Range Operating 5 – 90% (non-condensing)
General
Device Type Application accelerator
Height (Rack Units) 1U
Width 17.4 in
Depth 12 in
Height 1.7 in
Weight 9.48 lbs
Processor / Memory / Storage
Processors Installed 1 x Intel Xeon
Max Supported Qty 1
RAM 16 GB DDR4 SDRAM
Hard Drive SSD 200 GB
Expansion / Connectivity
Interfaces 8 x 1000Base-T – RJ-45 ¦ 2 x 1000Base-T – RJ-45 (WAN / LAN) ¦ 2 x 1000Base-X – SFP (mini-GBIC) (WAN) ¦ 2 x 10Gb Ethernet – SFP+ (WAN) ¦ 1 x 1000Base-T (management) – RJ-45 ¦ 1 x console – RJ-45 ¦ 1 x mini-USB ¦ 1 x USB 2.0 – Type A
Power
Power Device Internal power supply
Voltage Required AC 120/230 V
Software / System Requirements
OS Provided Wind River Linux 7
OS Required JUNOS
