NFX250-S1 Technical Specifications

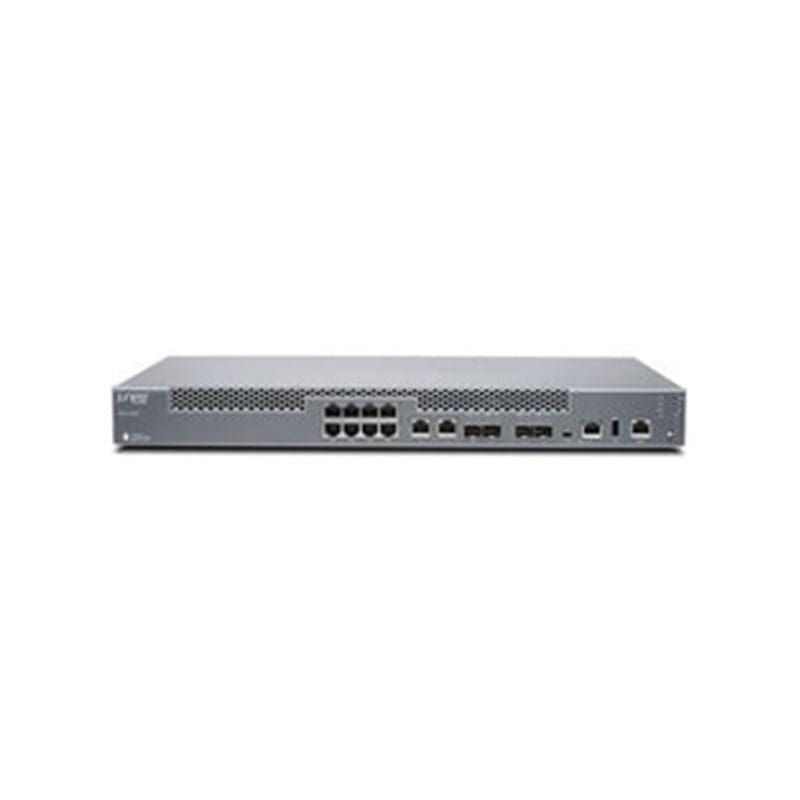

Juniper Networks NFX250 Network Services Platform application accelerator
Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks
Model :NFX250 Network Services Platform
Packaged Quantity :1
Chassis
Airflow Direction :Front to back airflow
Processor
Type :Six-Core Xeon D, Xeon
Max Supported Qty :1
Manufacturer :Intel
RAM
Technology :DDR4 SDRAM
Installed Size :16 GB
Hard Drive
Type :SSD
Capacity :100 GB
Performance
Performance :Forwarding performance: 88 Gbps, VNF capacity: 20 Gbps
Capacity
Capacity :MAC addresses: 16000, IGMP snooping entries: 1000, Maximum member ports per LAG: 8, Jumbo frame size: 9216, Active VLANs: 1024, ARP entries: 512, ACL entries: 1500, IPv4 routes (Unicast): 512, Maximum number of VNFs: 6, MST instances: 64, Virtual interfaces (VLANs): 4096, LAG groups: 32
Networking
Type :Application accelerator
Form Factor :Rack-mountable
Connectivity Technology :Wired
