NFI-U08-1 Technical Specifications

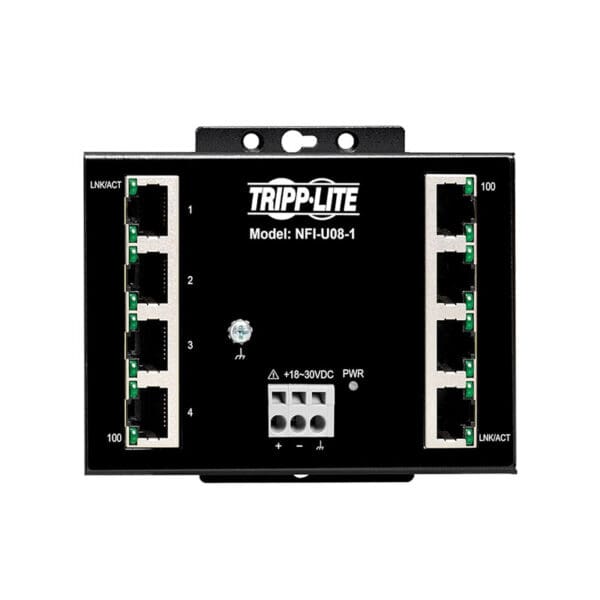

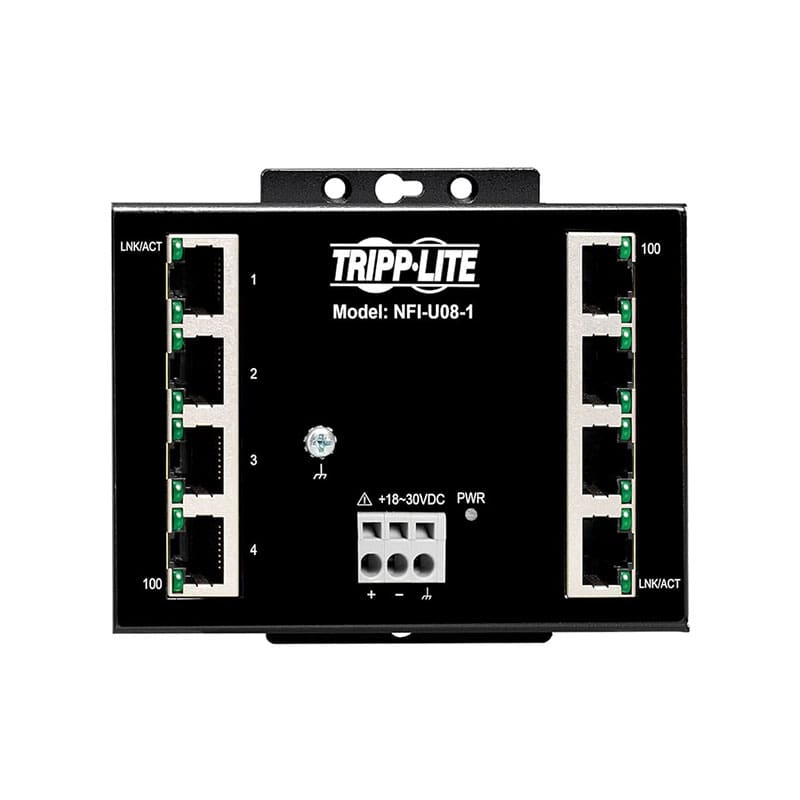

Tripp Lite Industrial Ethernet Switch 8-Port Unmanaged 10/100 Mbps, Ruggedized, DIN/Wall Mount Switch 8 ports
Brand: Tripp Lite
Product Line: Tripp Lite
Manufacturer: Tripp Lite
Network & Communication
Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Form Factor (Hubs & Switches): DIN rail mountable, Wall-mountable
Manageable: No
Ports: 8
Product Type: Switch
Subcategory: Network hubs and switches
Connectivity
Interface Provided: 8 x 100Base-T RJ-45
Port Quantity: 8
Port Type: 10/100
Power
Required Voltage: DC 18 – 30 volt
Technical Information
Max Operating Temperature: 167 degree Fahrenheit
Max Storage Temperature: 185 degree Fahrenheit
Min Operating Temperature: -40 degree Fahrenheit
Min Storage Temperature: -40 degree Fahrenheit
Operating Humidity: 5 – 95% (non-condensing)
Product Information
Packaged Quantity: 1
Performance: Switching capacity: 1.6 Gbps
Included Items
Dimensions & Weight
Height: 1.9 inch
Weight: 6.7 ounce
Width: 4.3 inch
Depth: 0.9 inch
