NCS-5504-SYS= Technical Specifications

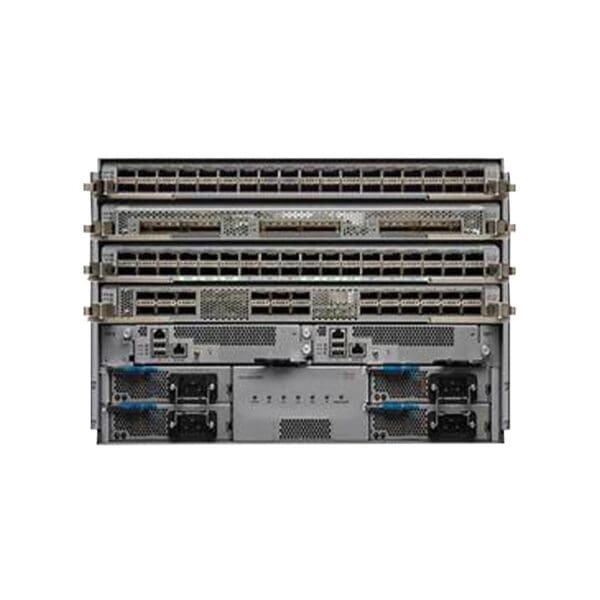

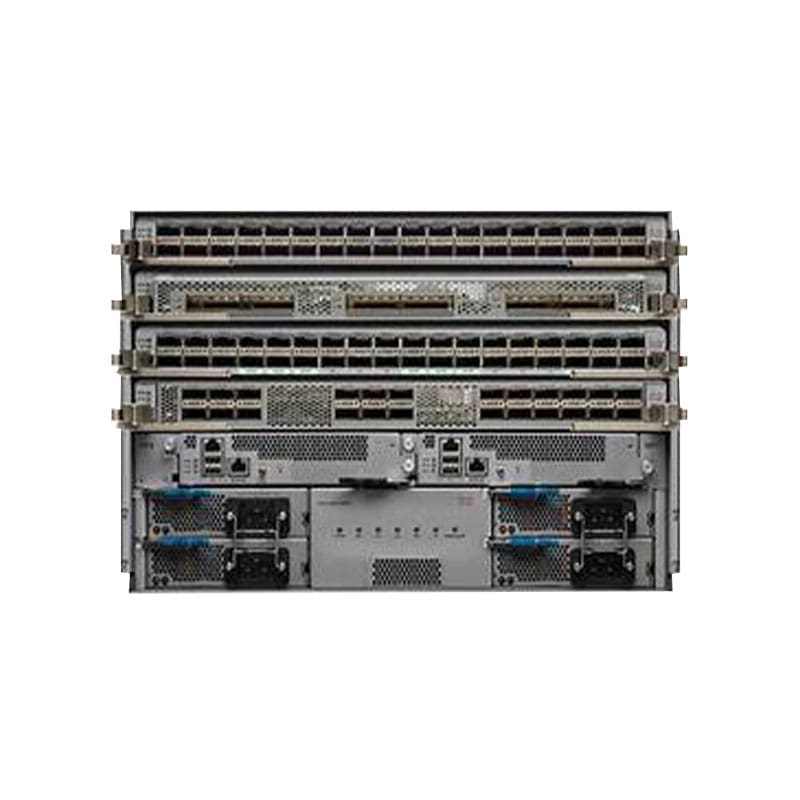

Cisco Network Convergence System 5504 modular expansion base
Brand: Cisco
Manufacturer: CISCO DS HARDWARE DIRECT
Product Line: Cisco Network Convergence System
Network & Communication
Connectivity Technology: Wired
Form Factor: Rack-mountable
Product Type: Modular expansion base
Expansion Slots
Expansion Slots: 12 (total) / 12 (free) x expansion slot
Power
Hot-Plug: Hot-plug
Power Supplies Supported: 4
Redundant Power Supply: Yes
Product Information
Max Operating Temperature: 104 degree Fahrenheit
Min Operating Temperature: 32 degree Fahrenheit
Operating Humidity: 5 – 95% (non-condensing)
Product Information
Device Type: Internal power supply
Packaged Quantity: 1
Dimensions & Weight
Height: 12.2 inch
Weight: 84.22 lbs
Width: 17.5 inch
Depth: 33.1 inch
Physical Characteristics
Color Category: Gray
